Liner Guide 0

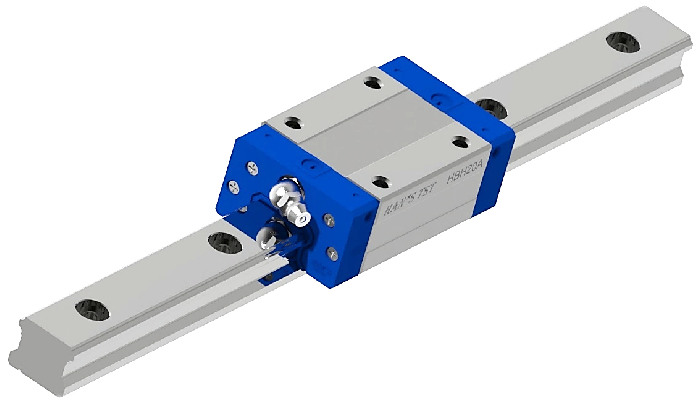

Linear Guide is a mechanical component used for supporting and guidance.

Download

Request Information

Features

High positioning accuracy

Superior guidance performance and exceptional stability

High load capacity with enhanced rigidity

Simplified maintenance procedures

Compact design with energy-efficient operation

Outstanding wear resistance, low frictional resistance, and extended service life

Applications

Automation industry

Semiconductor industry

Machine Tool industry

Medical industry

Robotics industry

New Energy industry

Parameters

Model	Dimensions			Slider Dimensions									H3

	M	W	L	B	C	S	L1	T	t	N	E	f0
HBL15NC	24	52	40.1	41	-	M5	23.1	5	7	5.5	5.7	6	4.5
HBL15C			56.8		26		39.8
HBL20NC	28	59	50	49	-	M6	29	7	9	6	12	6	6
HBL20C			69.1		32		48.1
HBL25NC	33	73	59.1	60	-	M8	35.5	7.5	10	8	12	8	7
HBL25C			82.6		35		59

Model	Rail Dimensions						Basic Load Rating		Allowable Static（kN·m）			Weight
	W1	W2	M1	G g	F	d1×d2×h	C kN	C0 kN	MP	MY	MR	Slider kg	Rail kg/m
HBL15NC	15	18.5	12.5	20	60	4.57.55.3	5.35	9.40	0.04	0.04	0.08	0.12	1.25
HBL15C							7.83	16.19	0.10	0.10	0.13	0.21
HBL20NC	20	19.5	15.5	20	60	69.58.5	7.23	12.74	0.06	0.06	0.13	0.19	2.08
HBL20C							10.31	21.13	0.16	0.16	0.22	0.32
HBL25NC	23	25	18	20	60	7119	11.40	19.50	0.12	0.12	0.23	0.35	2.67
HBL25C							16.27	32.40	0.32	0.32	0.38	0.59
