140-P-A-0

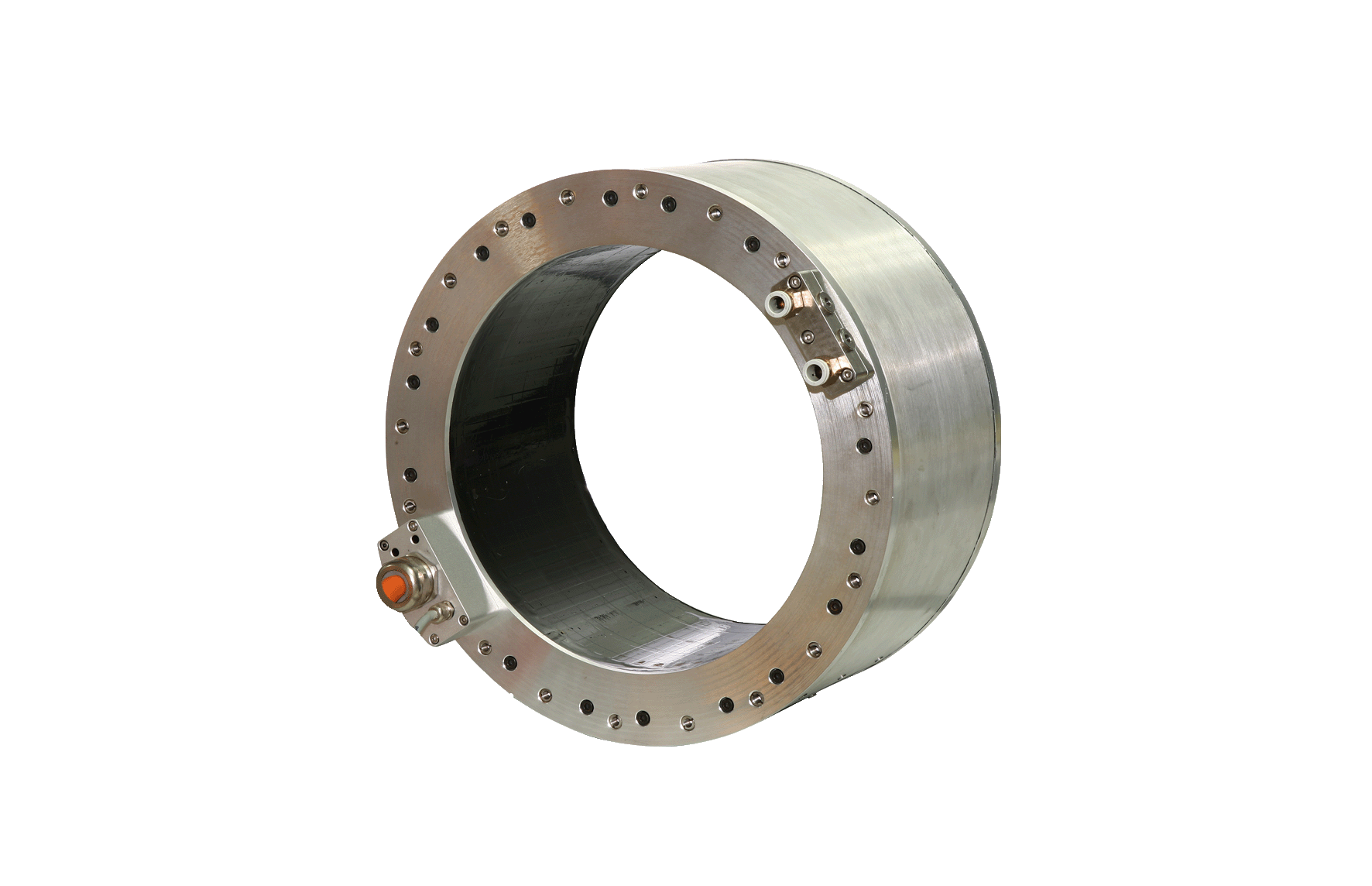

The BI5 series is a frameless DDR torque motor launched by Han's Motor, featuring high performance, low inertia, fast response, and strong overload capacity, capable of meeting the vast majority of market demands.

Download

Request Information

Features

Renishaw absolute encoder

High speed or low speed winding design

Reliable performance, mature process, fast delivery

It can be divided into stator and rotor, the maximum peak torque is 5500 Nm

Applications

3C Devices

Display Panels

Semiconductors

Medical Equipment

Precision Machine Tools

PCB Equipment and Other Applications

Parameters

BI5-xxx-P-x-0-W	Symbol	Unit	140-P-A-0
Pole Pairs	P	—	33
Max.Working Bus Voltage	Vdc	V	600
Peak Torque	Tp	Nm	2440.0
Continuous Torque (Water Cooling)	Tcw	Nm	1365.0
Continuous Torque (Natural Cooling)	Tc	Nm	585.0
Peak Current	Ip	Arms	48.8
Continuous Current (Water Cooling)	Icw	Arms	21
Continuous Current (Natural Cooling)	Ic	Arms	9
Torque Constant	Kt	Nm / Arms	65.0
Back EMF Constant	Ke	Vrms / rad / s	21.7
Back EMF Constant	Ke	Vrms / (1000 r / min)	3930.0
Line Resistance	R	Ω	6.8
Line Inductance	L	mH	38.0
Max.Speed, Tcw	Nmax, Tcw	rpm	56
Max.Speed, Tc	Nmax, Tc	rpm	85
Max.Speed, Tp	Nmax, Tp	rpm	35
Max.Speed, 0	Nmax	rpm	105
Power Consumption, Output Tcw	Plw	W	6483.0
Power Consumption, Output Tc	Plc	W	1191.0
Motor Constant	Km	Nm / √W	17.0
Cooling Water Flow	dV / dt	L / min	10.0
Cooling Water Temperature Difference Setting	△θ	k	5
Rated Winding Temperature	θ	℃	130
Motor Mass	Ms	Kg	60.0
Rotor Mass	Mr	KG	17.8
Rotor Moment of Inertia	Jm	Kg * m²	0.3505
Cable Length (Can Be Extended Optional)	L	M	6.0
Cable Minimum Bending Radius	R	mm	102.0
