Liner Guide 0

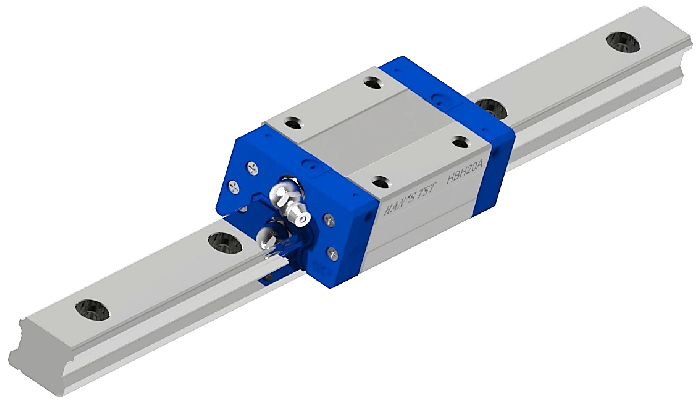

Linear Guide is a mechanical component used for supporting and guidance.

Download

Request Information

Features

High positioning accuracy

Superior guidance performance and exceptional stability

High load capacity with enhanced rigidity

Simplified maintenance procedures

Compact design with energy-efficient operation

Outstanding wear resistance, low frictional resistance, and extended service life

Applications

Automation industry

Semiconductor industry

Machine Tool industry

Medical industry

Robotics industry

New Energy industry

Parameters

Model	Dimensions			Slider Dimensions									H3
	Dimensions			Slider Dimensions
	M	W	L	B	C	S	L1	T	N	E	f0	Grease Fitting
HR30A	45	90	109.8	40	40	M8*10	71	9.5	9.5	12	10.3	B-MT6	6
HR30LA	45	90	131.8	40	60	M8*10	93	9.5	9.5	12	10.3	B-MT6	6
HR35A	55	100	124	50	50	M8*12	79	12	16	12	19.6	B-MT6	6.5
HR35LA	55	100	151.5	50	72	M8*12	106.5	12	16	12	19.6	B-MT6	6.5
HR45A	70	120	153.2	60	60	M10*17	106	16	20	12.9	24	B-PT1/8	8
HR45LA	70	120	187	60	80	M10*17	139.8	16	20	12.9	24	B-PT1/8	8
HR55A	80	140	183.7	75	75	M12*18	125.5	17.5	22	12.9	27.5	B-PT1/8	10
HR55LA	80	140	232	75	95	M12*18	173.8	17.5	22	12.9	27.5	B-PT1/8	10

Model	Rail Dimensions						Basic Load Rating		Allowable Static（kN·m）			Weight
Model	W1	W2	M1	G g	F	d1×d2×h	C kN	C0 kN	MP	MY	MR	Slider kg	Rail kg/m
HR30A	28	16	28	20	40	91412	39.1	82.1	1.06	1.06	1.445	0.82	4.41
HR30LA	28	16	28	20	40	91412	48.1	105	1.712	1.712	1.846	1.07	4.41
HR35A	34	18	30.2	20	40	91412	57.9	105.2	1.44	1.44	2.17	1.43	0.66
HR35LA	34	18	30.2	20	40	91412	73.1	142	2.6	2.6	2.93	1.86	0.66
HR45A	45	20.5	38	22.5	52.5	142017	92.6	178.8	3.05	3.05	4.52	2.97	9.97
HR45LA	45	20.5	38	22.5	52.5	142017	116	230.9	5.47	5.47	6.33	3.97	9.97
HR55A	53	23.5	44	30	60	162320	130.5	252	5.4	5.4	8.01	4.62	13.98
HR55LA	53	23.5	44	30	60	162320	167.8	348	10.25	10.25	11.15	6.4	13.98
