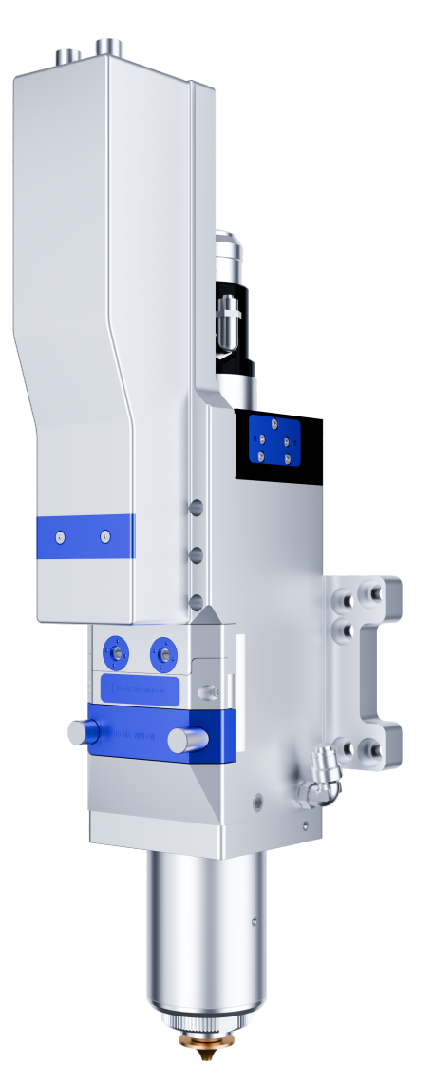

HC06

The Han's Focus HC06 cutting head offers high-power precision cutting with advanced thermal stability, auto-focusing, and robust durability for industrial applications.

Download

Request Information

Features

Servo Focusing: The focusing module is controlled by a servo motor, achieving high focusing accuracy and fast focusing speed

Height Adjustment Module: compatible with various mainstream height adjustment systems in the market, the height adjustment module can be equipped with an integrated follow-up sensor、External sensor for amplifier

High Dust Resistance: multiple protective sheets protect the internal lens; patented internal dust-proof technology effectively extends the lifespan of the lens

Bus Control: Optional bus configuration, utilizing EtherCAT bus communication mode to control the focusing module

Applications

Aerospace

Shipbuilding

Automobile Making

Machinery Manufacturing

Parameters

HC06
Technical Parameters
Applicable Power	≤ 6 kW
Collimator Focal Length	100 mm
Focal Length	200 mm
Coaxiality Adjustment Range	± 1.5 mm
Vertical Focus Adjustment Range	- 30 ~ + 20 mm
NA	0.14
Max Gas Pressure	25 bar
Fiber Core Diameter	100 μm / 150 μm
Fiber Connector	QBH, G5, Q+, QD, LOE, etc.
Weight	≤ 7.5 kg
Ceramic Ring	Φ 31 mm
Threaded Nozzle	M11 * 0.75 mm
