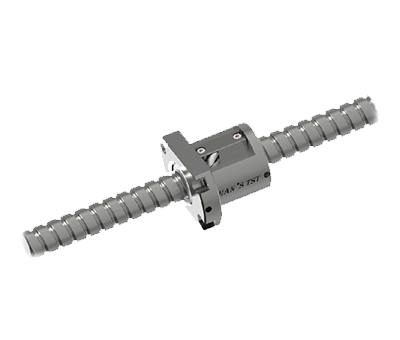

HBS1616G182

Tubular return ball screw employ tubes embedded in the nut to enable the balls within the helical groove to recirculate continuously. This design offers the widest range of shaft diameter and lead combinations, making it the most commonly used recirculation method

Download

Request Information

Features

High precision

Excellent durability

High rigidity and no back clearance

High transmission efficiency

Applications

Automation industry

Semiconductor industry

CNC machine tool industry

New energy and automobile industry

Parameters

One-time pitch nominal model	Shaft Diameter d	Screw Lead I	Diameter of Ball Da	Nut Size										Nut Rated Load		Rigidity K kgf/μm
One-time pitch nominal model	Shaft Diameter d	Screw Lead I	Diameter of Ball Da	D	A	E	B	L	W	H	X	Q	n	Ca	Coa	Rigidity K kgf/μm
HBS1616G182	16	16	2.778	32	53	10.1	10	45	42	34	4.5	M6	1.8x2	1073	2551	31
HBS1616G282	16	16	2.778	32	53	10.1	10	61	42	34	4.5	M6	2.8x2	1568	3968	47
HBS2020G182	20	20	3.175	39	62	13	10	52	50	41	5.5	M6	1.8x2	1387	3515	37
HBS2020G282	20	20	3.175	39	62	13	10	72	50	41	5.5	M6	2.8x2	2029	5468	56
HBS2525G182	25	25	3.969	47	74	15	12	64	60	49	6.6	M6	1.8x2	2074	5494	45
HBS2525G282	25	25	3.969	47	74	15	12	89	60	49	6.6	M6	2.8x2	3032	8546	69
HBS3232G182	32	32	4.762	58	92	17	12	78	74	60	9	M6	1.8x2	3021	8690	58
HBS3232G282	32	32	4.762	58	92	17	12	110	74	60	9	M6	2.8x2	4417	13517	88
HBS4040G182	40	40	6.35	73	114	19.5	15	99	93	75	11	M6	1.8x2	4831	14D52	70
HBS4040G282	40	40	6.35	73	114	19.5	15	139	93	75	11	M6	2.8x2	7065	21874	106
HBS5050G182	50	50	7.938	90	135	21.5	20	117	112	92	14	M6	1.8x2	7220	21974	86
HBS5050G282	50	50	7.938	90	135	21.5	20	167	112	92	14	M6	2.8x2	1055B	34182	131

Two-time pitch nominal model	Shaft Diameter d	Screw Lead I	Diameter of Ball Da	Nut Size										Nut Rated Load		Rigidity K kgf/μm
Two-time pitch nominal model	Shaft Diameter d	Screw Lead I	Diameter of Ball Da	D	A	E	B	L	W	H	X	Q	n	Ca	Coa	Rigidity K kgf/μm
HBS1632G082	16	32	2.778	32	53	10.1	10	42.5	42	34	4.5	M6	0.8x2	493	1116	11
HBS1632G182	16	32	2.778	32	53	10.1	10	42.5	42	34	4.5	M6	1.8x2	989	2511	23
HBS2040G082	20	40	3.175	39	62	13	10	48	50	41	5.5	M6	0.8x2	653	1597	15
HBS2040G182	20	40	3.175	39	62	13	10	88	50	41	5.5	M6	1.8x2	1311	3592	30
HBS2550G082	25	50	3.969	47	74	15	12	58	60	49	6.6	M6	0.8x2	976	2495	19
HBS2550G182	25	50	3.969	47	74	15	12	108	60	49	6.6	M6	1.8x2	1960	5614	32
HBS3264G082	32	64	4.762	58	92	17	12	71	74	60	9	M6	0.8x2	1374	3571	22
HBS3264G182	32	64	4.762	58	92	17	12	135	74	60	9	M6	1.8x2	2759	8441	46
HBS4080G082	40	80	6.35	73	114	19.5	15	90	93	75	11	M6	0.8x2	2273	6387	29
HBS4080G182	40	80	6.35	73	114	19.5	15	170	93	75	11	M6	1.8x2	4566	14370	50
HBS50100G082	50	100	7.938	90	135	21.5	20	111	112	92	14	M6	0.8x2	3398	9980	35
HBS50100G182	50	100	7.938	90	135	21.5	20	211	112	92	14	M6	1.8x2	6824	22455	72
