Liner Guide 0

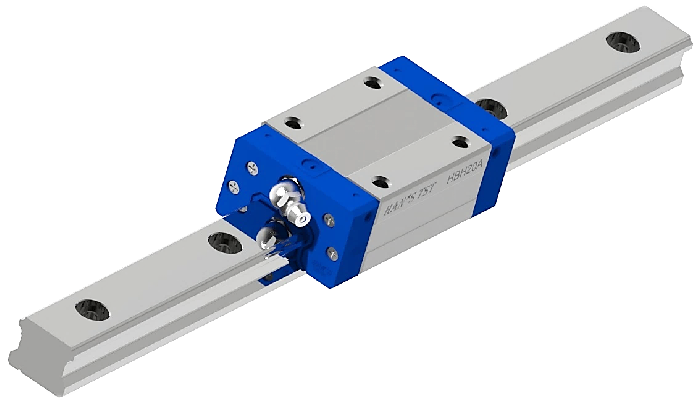

Linear Guide is a mechanical component used for supporting and guidance.

Download

Request Information

Features

High positioning accuracy

Superior guidance performance and exceptional stability

High load capacity with enhanced rigidity

Simplified maintenance procedures

Compact design with energy-efficient operation

Outstanding wear resistance, low frictional resistance, and extended service life

Applications

Automation industry

Semiconductor industry

Machine Tool industry

Medical industry

Robotics industry

New Energy industry

Parameters

Model	Dimensions			Slider Dimensions									H3

	M	W	L	B	C	S	L1	T1	t	T	N	E
HBH15C	24	47	61.4	38	30	M5	39.4	6.95	8.9	6	3.95	5.3	4.3
HBH20C	30	63	77.5	53	40	M6	50.5	9.5	10	8	6	12	4.6
HBH20LC			92.2				65.2
HBH25C	36	70	84	57	45	M8	58	10	14	8	6	12	5.5
HBH25LC			104.6				78.6
HBH30C	42	90	98.6	72	52	M10	71.6	14.5	15.2	12	7.4	12	6.3
HBH30LC			120.7				93.7
HBH35C	48	100	112.4	82	62	M10	80	13	18	10.1	9	12	7.5
HBH35LC			138.2				105.8
HBH45C	60	120	139.4	100	80	M12	97	15	22	15.1	8.5	12.9	9.5
HBH45LC			171.2				128.8
HBH55C	70	140	166.7	116	95	M14	117.7	17	26.5	17.5	12	12.9	13
HBH55LC			204.8				155.8

Model	Rail Dimensions						Basic Load Rating		Allowable Static（kN·m）			Weight
Model	W1	W2	M1	G g	F	d1×d2×h	C kN	C0 kN	MP	MY	MR	Slider kg	Rail kg/m
HBH15C	15	16	15	20	60	69.58.5	11.38	16.97	0.10	0.10	0.12	0.17	1.45
HBH20C	20	21.5	17.5	20	60	69.58.5	17.75	27.76	0.20	0.20	0.27	0.40	2.21
HBH20LC	20	21.5	17.5	20	60	91412	21.18	35.90	0.35	0.35	0.35	0.52	2.21
HBH25C	23	23.5	22	20	60	7119	26.48	36.49	0.33	0.33	0.42	0.59	3.21
HBH25LC	23	23.5	22	20	60	7119	32.75	49.44	0.57	0.57	0.56	0.80	3.21
HBH30C	28	31	24.5	20	80	91412	40.8	54.1	0.53	0.53	0.66	1.09	4.47
HBH30LC	28	31	24.5	20	80	91412	50.02	70.93	0.92	0.92	0.88	1.44	4.47
HBH35C	34	33	29	20	80	91412	49.52	69.16	0.81	0.81	1.16	1.56	6.30
HBH35LC	34	33	29	20	80	91412	60.21	91.63	1.40	1.40	1.54	2.06	6.30
HBH45C	45	37.5	38	22.5	105	142017	77.57	102.71	1.55	1.55	1.98	2.79	10.41
HBH45LC	45	37.5	38	22.5	105	142017	94.54	136.46	2.68	2.68	2.63	3.69	10.41
HBH55C	53	43.5	44	30	120	162320	114.44	148.33	2.64	2.64	3.69	4.52	15.08
HBH55LC	53	43.5	44	30	120	162320	139.35	196.20	4.57	4.57	4.88	5.96	15.08
