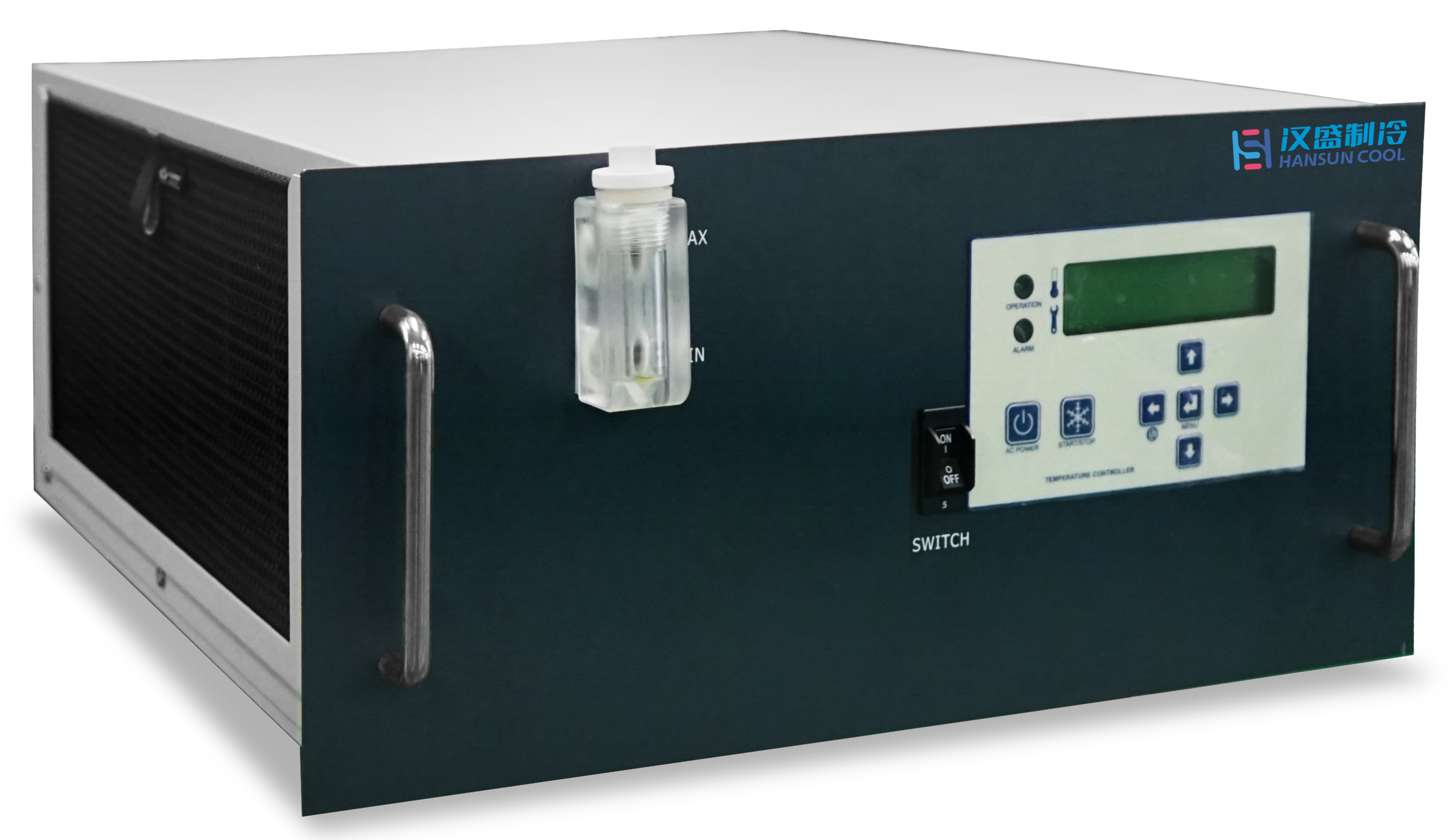

HC003H1-02B(5U)

Download

Request Information

Features

± 0.1 ℃ high precision temp control

Environmental

Noiseless: 63 dB

Alarming

Heating

Antifreezing

Easy moving

HD display

Parameters

HC003H1-02B(5U)
Parameters
Cooling Capacity(W)	300 (Freezing water temp 28°C, ambient temp 35°C)
Heating Capacity(W)	600
Refrigerant	R134a
Power Supply	220V 1PH～/50Hz
Cooling/Heating Power（W）	340 / 800
Cooling/Heating Current（A）	1.55 / 3.64
Signal Line Definition	Pins 1 and 2: External control start (short-circuit start)，Pins 3 and 4: Flow and temperature alarm (normally closed)，Pins 5 and 6: Ready (normally closed); The rest pins are empty
Power Cord Definition	Pin 1: Ground wire PE, Pin 2: Fire Line L, Pin 5: Neutral wire N
Water Tank Capacity（L）	16
Water Pump Maximum Flow（LPM）	10
Flow Alarm Value（LPM）	2 ± 20%
High-temp Alarm Value(℃)	35
Low-temp Alarm Value(℃)	15
Water Temp Control Accuracy(℃)	± 0.1
Inlet and Outlet Water Joint（mm）	Outlet φ16, Inlet φ12 Quick coupling
Ambient temperature(℃)	15～35
Size（mm）	485 × 575 × 286
Net Weight（kg）	30
