Y-axis (crossbeam axis)

The LMD customizable gantry series features incremental encoder feedback and stable motion, with configurable stroke, speed, and acceleration for various applications.

Download

Request Information

Features

Adopt Han's brand U-type linear motor and ACS high-performance control system

It is suitable for precision inspection, printing plate making and other applications

ACS, ELMO, Servotronix driver, RENISHAW absolute grating (0.1 μm) and THK or WON guide rail

The base and beam are made of marble, fixed gantry structure, strong load capacity and good stability

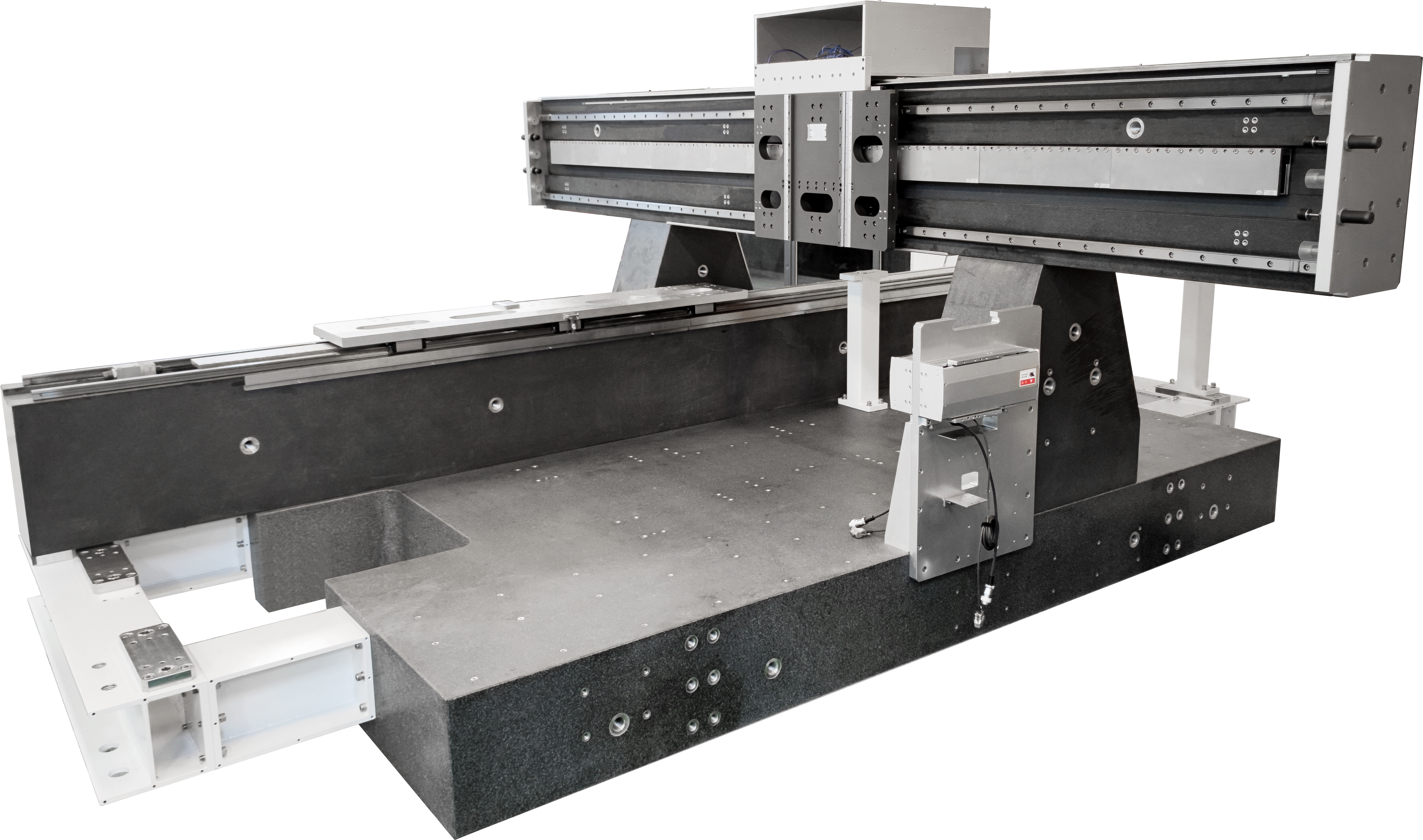

High-precision granite gantry stage can be customized according to customer requirements, with optional Z-axis expansion

Applications

3C Devices

Display Panels

Semiconductors

Medical Equipment

Precision Machine Tools

PCB Equipment and Other Applications

Parameters

	Y-axis (crossbeam axis)
Stroke (mm)	2850
Max. Velocity (m / s)	1
Acceleration (g)	0.4
Repeat Accuracy (μm)	± 1.15 um
PositionaI Accuracy (μm)	± 2 um / 1.5 m
Velocity Fluctuation	＜ 0.3 %
Acceleration and Deceleration Vibration	Smooth without Vibration
Horizontal Straightness (μm)	7.53
Vertical Straightness (μm)	6.96
Load (kg)	140
X-Y Verticality (mm)	0.01
