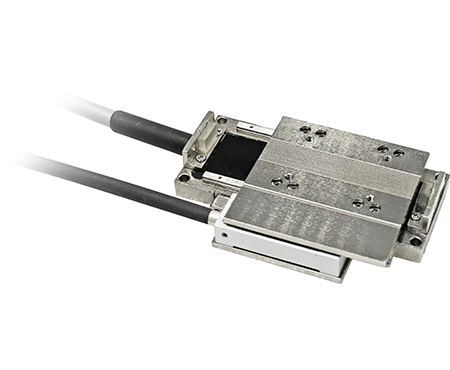

LMA38-10

The LMA38 Miniature Stage by Han's Motor is a compact, high- precision positioning stage offering rapid response, smooth motion, and excellent repeatability for precision automation applications.

Download

Request Information

Features

Open structure for easy disassembly and maintenance

Built-in grating or magnetic grating feedback with 0.1 μm, 0.5 μm, 1 μm, 5 μm resolution options

Moving magnet flat linear motor

Repeat accuracy up to ± 1 um

Small size and simple structure, which is suitable for light load and high precision occasions

Quickly assemble to XY cross stages

Applications

3C Devices

Display Panels

Semiconductors

PCB Equipment

Precision Machine Tools

Industrial Automation and Other Applications

Parameters

LMA38	LMA38-10-G01-A	LMA38-10-G05-A
Feedback system	Grating Feedback, Resolution 0.1 μm	Grating Feedback, Resolution 0.5 μm
*Motor Model / Parameter*
Motor Parameter	Unit	Data
Continuous Force (Tmax）	N	0.6
Peak Force	N	3
Motor Constant	N√W	0.5
Max.Continuous Power Dissipation	W	1.42
Continuous Current (Tmax）	Arms	0.15
Peak Current (1 S)	Arms	0.8
Force Constant (25 ℃, ± 5 %）	N / Arms	4
Back EMF Constant (25 ℃, ± 5 %）	Vrms / m / s	1.3
Electrical Resistance (25 ℃, ± 5 %）P-P	Ω<	30
Inductance (25℃, ± 20 %）P-P	μm	0.25
Max Coil Temperature	℃
Polar Distance (N-N) (360 ℃ Electrical Cycle)	mm	24
Magnetic Attraction	N	11
Stage Model / Parameter
Stator Model	Unit	Data
Max. Load	kg	1
Effective Stroke	mm	10
Resolution	μm	0.1
Max.Speed（1）	mm / s	200
Repeat Accuracy	μm	± 0.5
Weight	kg	0.1
Working Environment Temperature and Humidity	0 - 40 ℃, 20 - 80 % RH
