RC304

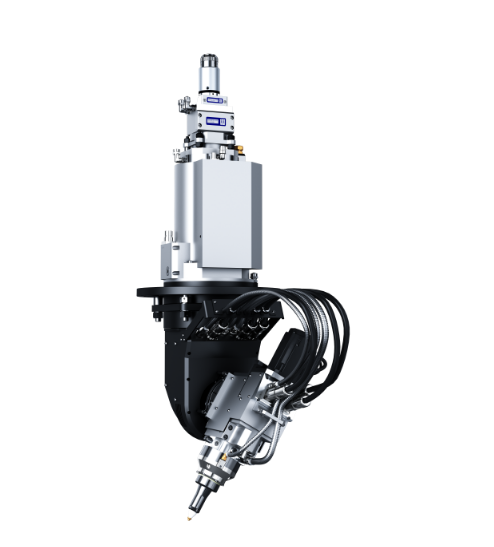

The Han's Focus RC304 5-Axis Cutting Head enables complex 3D laser processing with high precision, dynamic focus adjustment, and multi-angle cutting capabilities for industrial applications.

Download

Request Information

Features

High-precision Cutting: Utilizing a direct-drive shaft design, it boasts high precision, excellent response, and a repeatability positioning accuracy of ≤ + 0.005 °

High Compatibility: It is compatible with systems from Siemens, Rexroth, Fanuc, etc., and features Five-Axis linkage functionality

Collision Protection: It features collision protection at any angle and can quickly reset after a collision

Flexible Switching: Replaceable swing shaft for 3D welding functionality

Applications

Aerospace

Shipbuilding

Automobile Making

Machinery Manufacturing

Parameters

	RC304
Beam Aperture	35 mm
Medium
Optics	Collimating Lenses Ff = 100 Focusing Lenses Ff = 150
Installation	Horizontal and Vertical Mounting (optional) Horizontal Adjustment Range ± 1.25 °
C Axis
Rotating Range	n * 360 °
Maximum Rotating Speed	max. 90 r / min
Maximum Acceleration	60 rad / s2
A Axis
Rotating Range	± 135 °
Maximum Rotating Speed	max. 90 r / min
Maximum Acceleration	60 rad / s2
Drive Load	Torque Motor (See Motor Parameter Table for Details)
Inertia	Depend on the Configuration
Encoder System	Horizontal and Vertical Mounting (optional) Horizontal Adjustment Range ± 1.25 °
W Axis	Take Fanuc as an example
W-Axis Stroke	± 12.5 mm
Maximum Speed	30 m / min
Maximum Acceleration	4 g
Rated Torque	0.65 NM
Maximum Torque	2.5 NM
Driving Device	Servo motor (Fanuc)
Encoder System	FANUC
Laser	4 Kw
Fiber Connector	Standard QBH, Other Optional Connectors
Weight	About 35 Kg
Storage Temperature	- 15°C ~ 50°C
Operating Environment	Temperature: 10°C ~ 45 °C, Humidity: < 80 %
