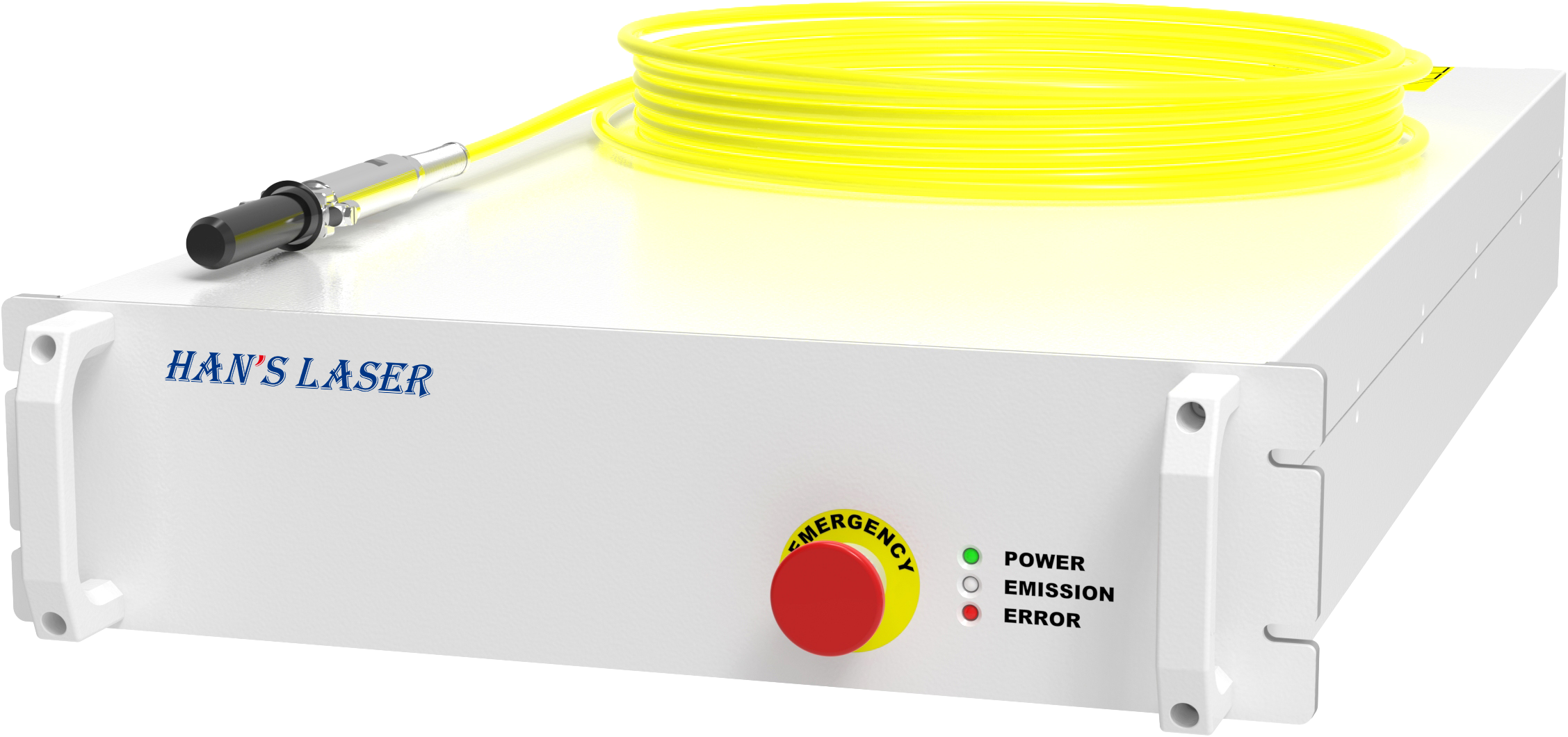

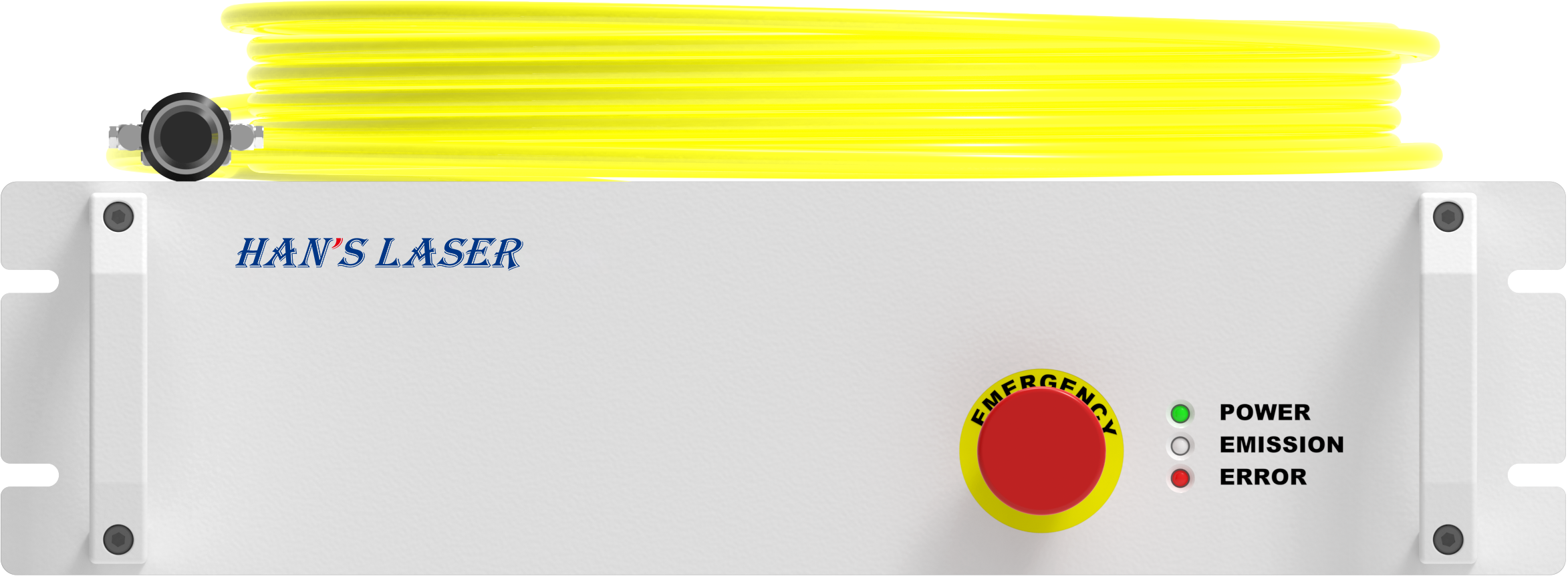

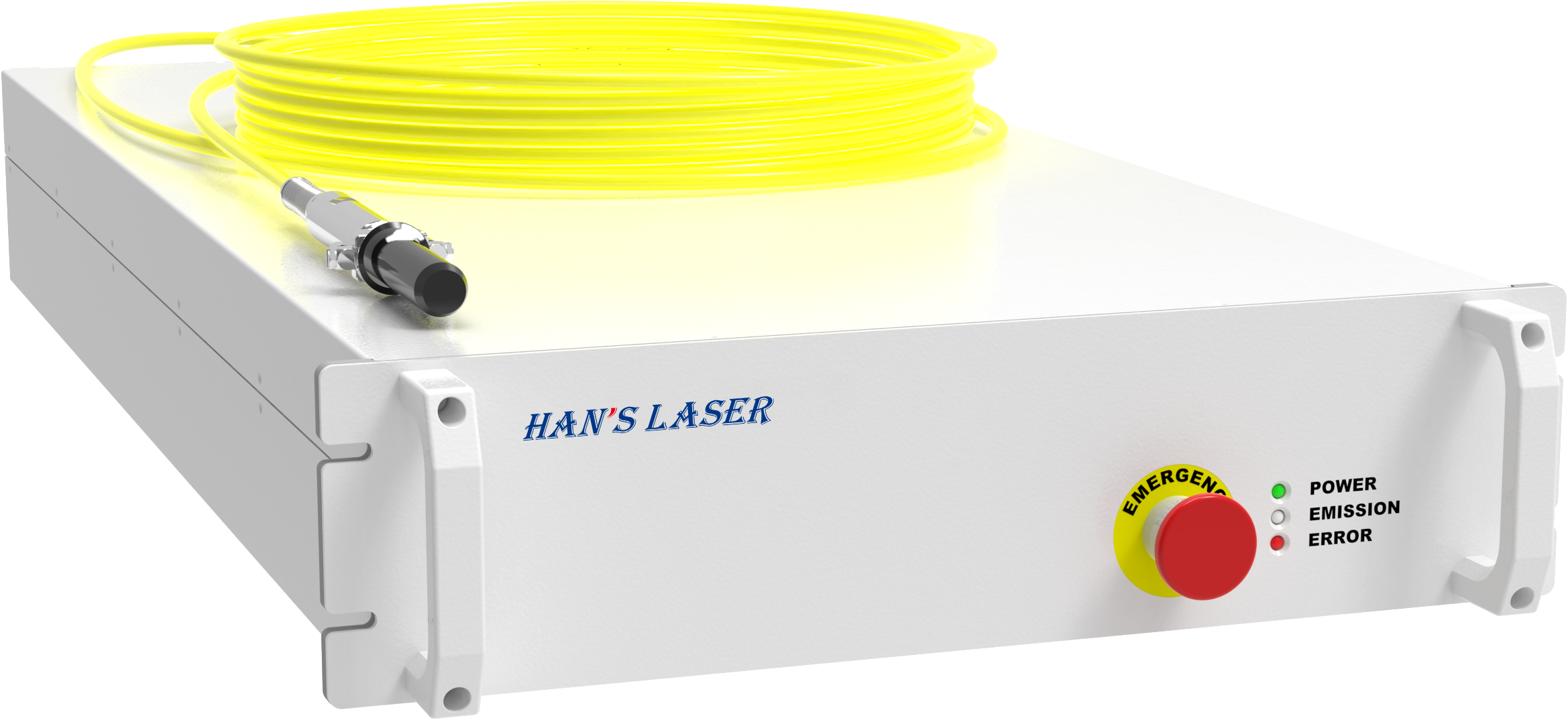

Single Module 6000 W

This compact, lightweight device features a high-efficiency photoelectric module, advanced electric control system, microsecond pulse response, and expert-level laser analysis for optimal performance and ease of use.

Download

Request Information

Features

Mainly for cutting, welding, cladding, etc.

Core diameter 34 / 50 / 100 μm, customizable

Compact structure & real-time internal monitoring control system

Great anti-reflection capability, no need to worry about processing high-reflection material

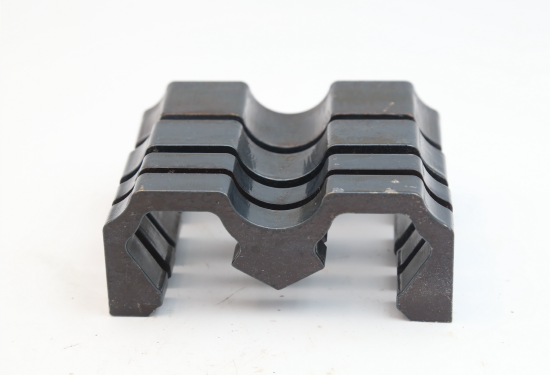

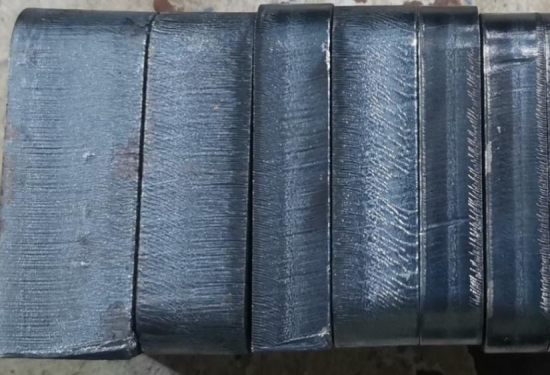

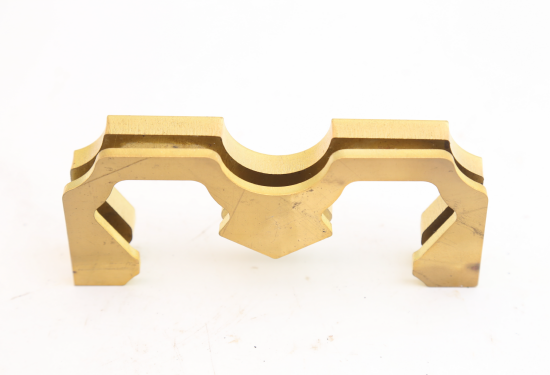

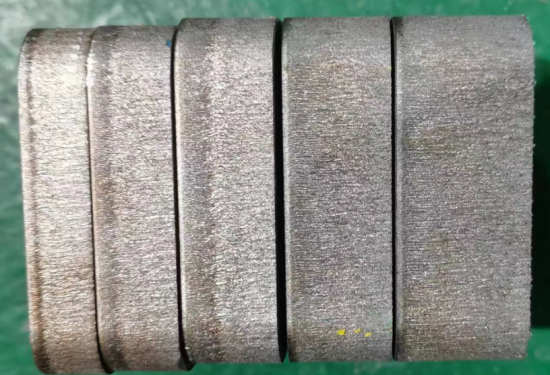

Sample Display

Parameters

CW Fiber Laser - Single Module
Optical Parameters
Power	6000 W
Wavelength	1080 nm
3DB Bandwidth	6 ± 1 nm
Output Connector	QBH
Output Fiber Diameter	30 / 50 / 100 μm (Customizable)
Output Fiber Length	20 m (Customizable)
Electro-optical Conversion Rate	＞ 40 %
Power Stability	± 1 %
Beam Quality	BPP ≤ 1 / 2 /4
General Parameters
Operating Voltage	360 ~ 440 V, 50/60 Hz
Control Mode	External Control Interface / Network Port / Bus Control
Cooling	Water Cooling
Physical Properties
Console Dimensions	485 mm × 1017 mm × 122 mm (including handles) (L × W × H)
Laser Weight	< 67 kg
