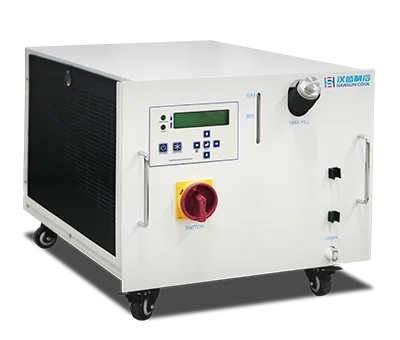

HC015H6-02A(8U)

Download

Request Information

Features

± 0.1 ℃ high precision temp control

Environmental

Noiseless: 68

Alarming

Heating

Antifreezing

Easy moving

HD display

Parameters

HC015H6-02A(8U)
Parameters
Cooling Capacity(W)	1500 (Freezing water temp 25°C, ambient temp 35°C)
Heating Capacity(W)	1000
Refrigerant	R134a
Type of Cooling	Air Cooling
Power Supply	220V ~ /50Hz
Rated Power (W)	1300 (cooling) / 1750 (heating)
Rated Current（A）	5.9 (cooling) / 8.0 (heating)
Power Pin Definition	Brown: Live wire L; Blue: Neutral line N; Yellow-green: Ground wire PE
Signal Pin Definition	Pins 1 and 2: External control start (short-circuit start); Pins 3 and 4: Alarm signal (normally closed); Pins 5 and 6: Ready signal (Normal closure)
Temp Range(℃)	10~40
Temp Control Accuracy(℃)	± 0.1
Maximum Flow（LPM）	58.3
Maximum Head（m）	38
High/Low Temp Alarm(℃)	+40 / +5
Flow alarm(LPM)	3 ± 20%
Water Tank Capacity（L）	16
Inlet and Outlet Water Joint（mm）	φ12 quick connector
Temperature Range(℃)	10~40
Size LWH（mm）	483 × 756 × 427（Without joints）
Net Weight（kg）	60
