050-P-A-0

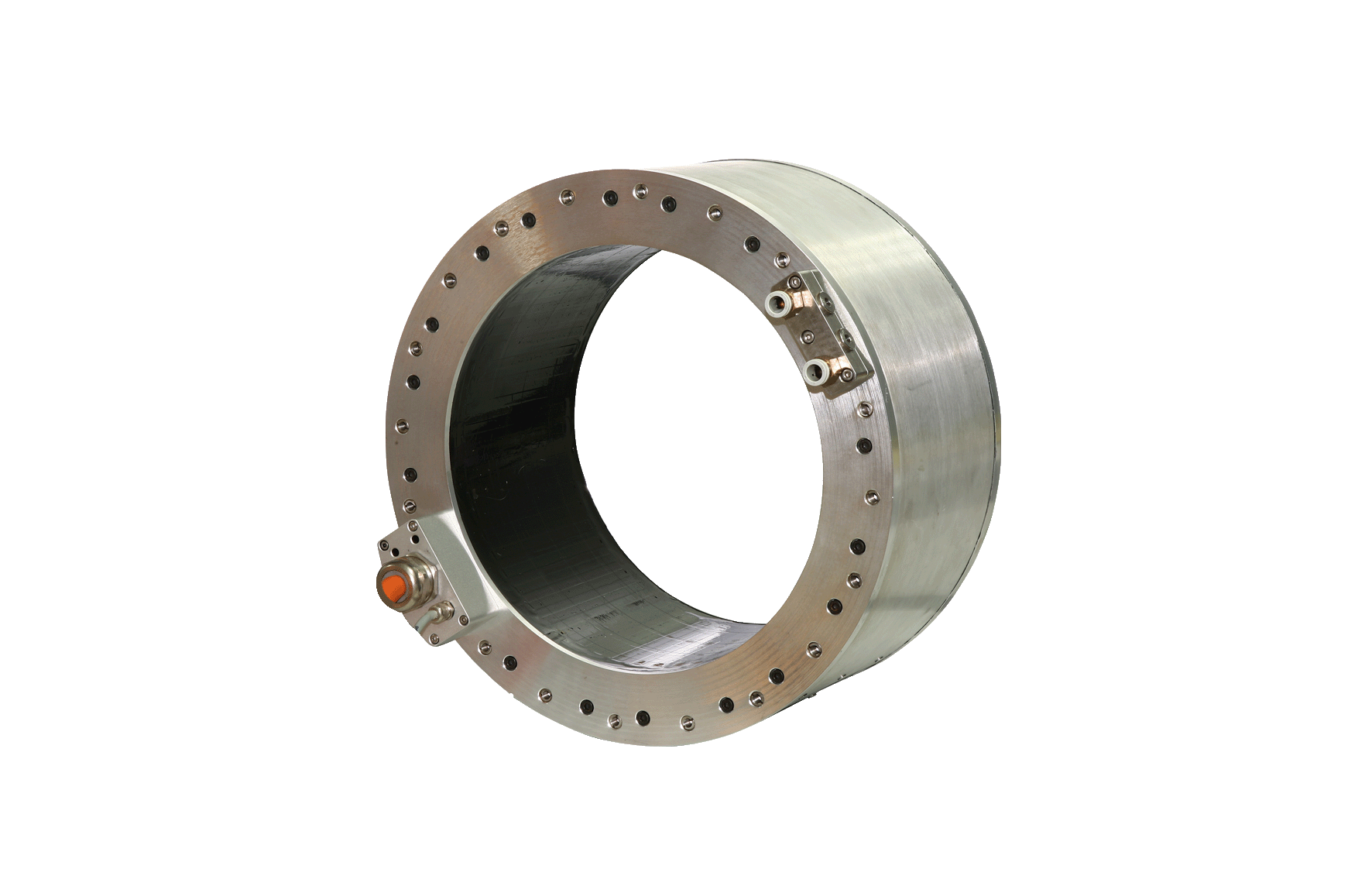

The BI5 series is a frameless DDR torque motor launched by Han's Motor, featuring high performance, low inertia, fast response, and strong overload capacity, capable of meeting the vast majority of market demands.

Download

Request Information

Features

Renishaw absolute encoder

High speed or low speed winding design

Reliable performance, mature process, fast delivery

It can be divided into stator and rotor, the maximum peak torque is 5500 Nm

Applications

3C Devices

Display Panels

Semiconductors

Medical Equipment

Precision Machine Tools

PCB Equipment and Other Applications

Parameters

BI5-xxx-P-x-0-W	Symbol	Unit	050-P-A-0
Pole Pairs	P	—	33
Max.Working Bus Voltage	Vdc	V	540
Peak Torque	Tp	Nm	1000.0
Continuous Torque (Water Cooling)	Tcw	Nm	546.0
Continuous Torque (Natural Cooling)	Tc	Nm	234.0
Peak Current	Ip	Arms	50
Continuous Current (Water Cooling)	Icw	Arms	21
Continuous Current (Natural Cooling)	Ic	Arms	9
Torque Constant	Kt	Nm / Arms	26.0
Back EMF Constant	Ke	Vrms / rad / s	8.7
Back EMF Constant	Ke	Vrms / (1000 r / min)	1572.0
Line Resistance	R	Ω	3.2
Line Inductance	L	mH	14.0
Max.Speed, Tcw	Nmax, Tcw	rpm	130
Max.Speed, Tc	Nmax, Tc	rpm	190
Max.Speed, Tp	Nmax, Tp	rpm	10
Max.Speed, 0	Nmax	rpm	230
Power Consumption, Output Tcw	Plw	W	5557.0
Power Consumption, Output Tc	Plc	W	1021.0
Motor Constant	Km	Nm / √W	10.0
Cooling Water Flow	dV / dt	L / min	6.8
Cooling Water Temperature Difference Setting	△θ	k	5
Rated Winding Temperature	θ	℃	130
Motor Mass	Ms	Kg	25.5
Rotor Mass	Mr	KG	7.5
Rotor Moment of Inertia	Jm	Kg * m²	0.1420
Cable Length (Can Be Extended Optional)	L	M	3.0
Cable Minimum Bending Radius	R	mm	102.0
