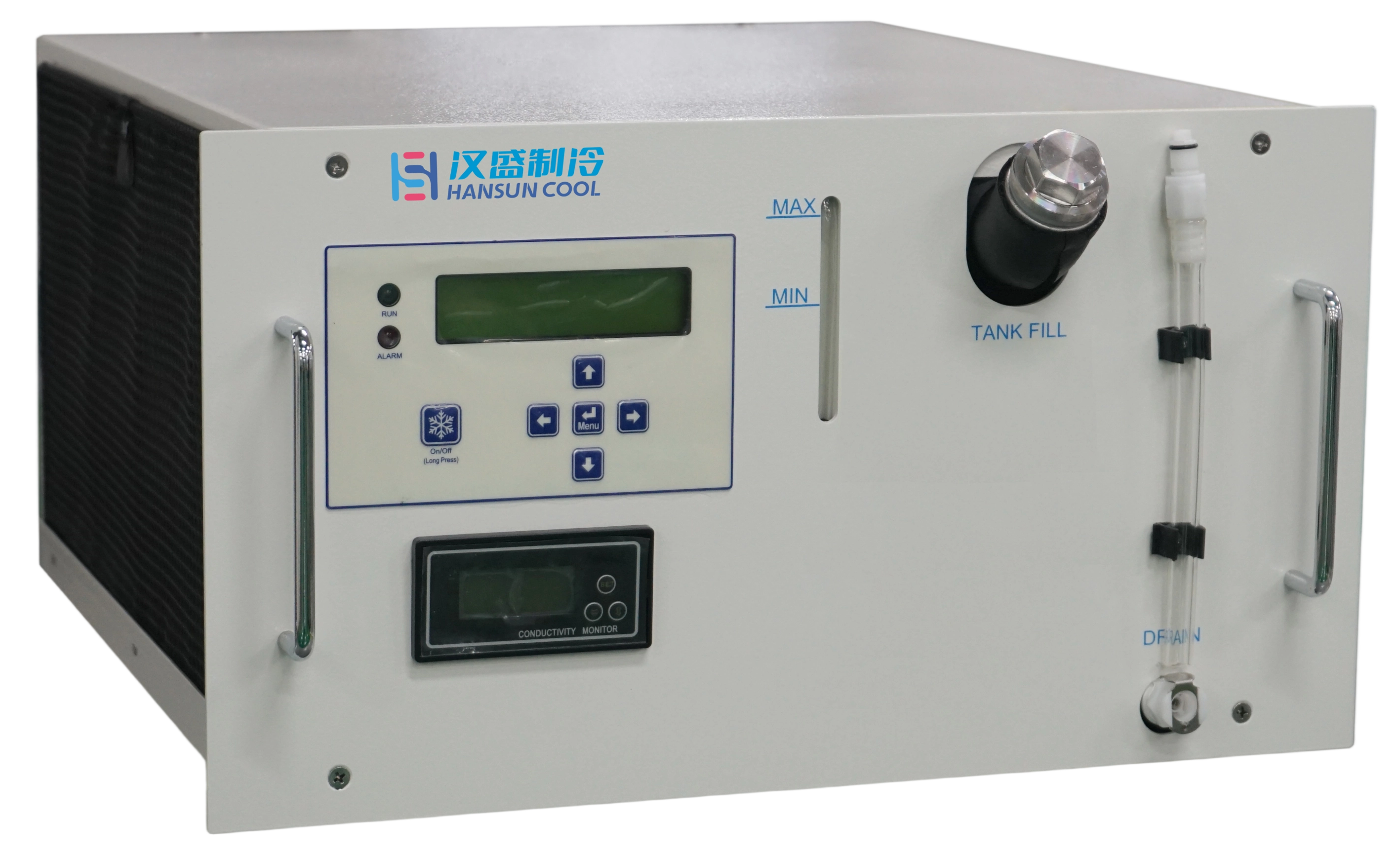

HC010H6-82A(6U D1)

Download

Request Information

Features

± 0.1 ℃ high precision temp control

Environmental

Noiseless: 63 dB

Alarming

Heating

Antifreezing

Easy moving

HD display

Parameters

HC010H6-82A(6U D1)
Parameters
Cooling Capacity(W)	1000 (Freezing water temp 25°C, ambient temp 35°C)
Heating Capacity(W)	600
Refrigerant	R134a
Type of Cooling	Air Cooling
Power Supply	230V ~ 50/60Hz
Rated Power (W)	928 (cooling) / 765 (heating)
Rated Current（A）	4.1 (cooling) / 3.5 (heating)
Power Pin Definition	L: Live wire; N: Neutral wire; PE: Ground wire
Signal Pin Definition	Pins 1 and 2: External control start (short-circuit start); Pins 3 and 4: Alarm signal (normally closed); Pins 5 and 6: Ready signal (Normal closure)
Temp Range(℃)	10~40
Temp Control Accuracy(℃)	± 0.1
Maximum Flow（LPM）	19
Maximum Head（m）	27
High/Low Temp Alarm(℃)	+40 / +5
Flow alarm(LPM)	3 ± 20%
Water Tank Capacity（L）	8.4
Inlet and Outlet Water Joint（mm）	φ12 quick connector
Temperature Range(℃)	10~40
Size LWH（mm）	483 × 695 × 339
Net Weight（kg）	55
