080-P-B-0

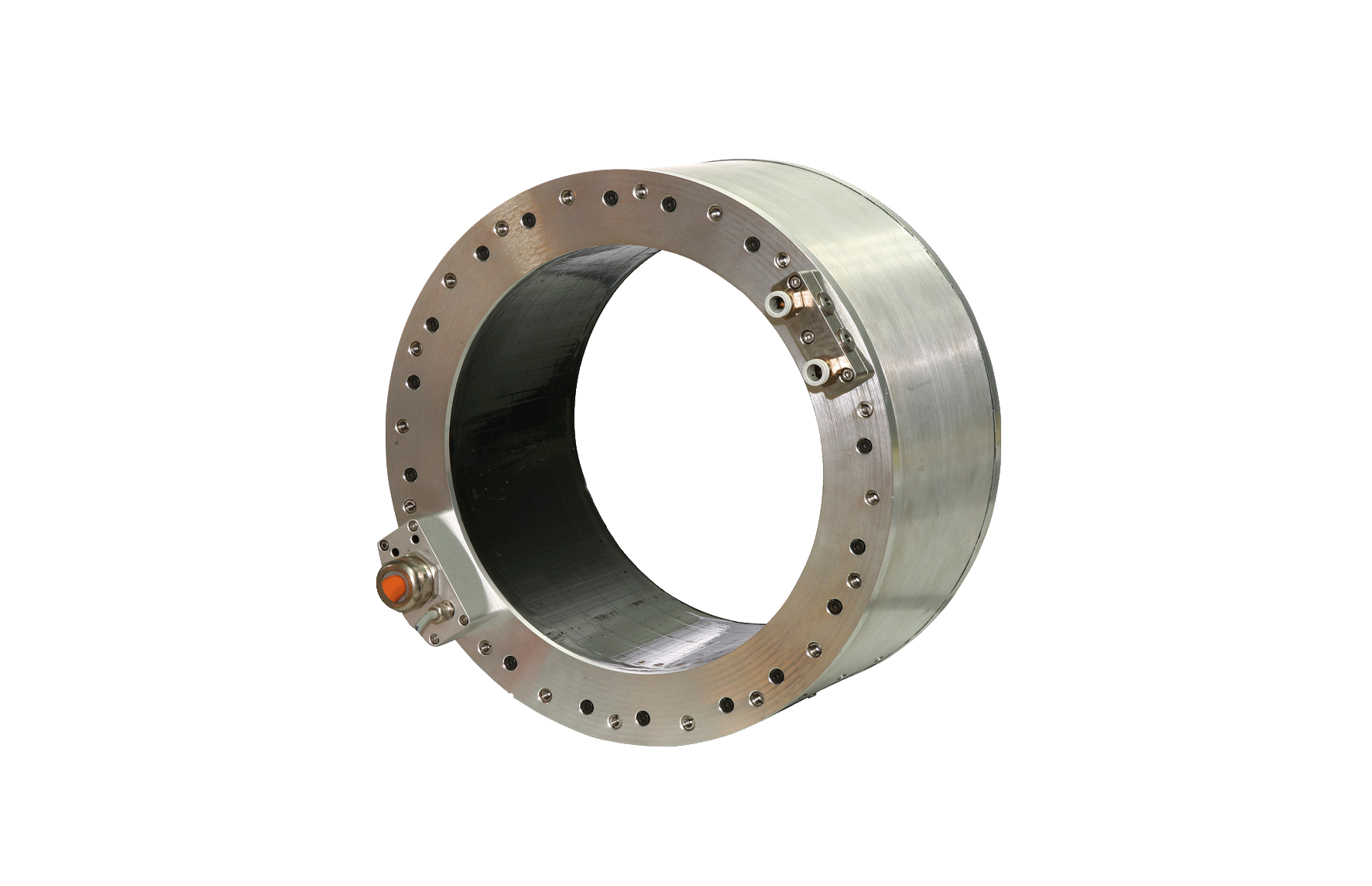

The BI5 series is a frameless DDR torque motor launched by Han's Motor, featuring high performance, low inertia, fast response, and strong overload capacity, capable of meeting the vast majority of market demands.

Download

Request Information

Features

Renishaw absolute encoder

High speed or low speed winding design

Reliable performance, mature process, fast delivery

It can be divided into stator and rotor, the maximum peak torque is 5500 Nm

Applications

3C Devices

Display Panels

Semiconductors

Medical Equipment

Precision Machine Tools

PCB Equipment and Other Applications

Parameters

BI5-xxx-P-x-0-W	Symbol	Unit	080-P-B-0
Pole Pairs	P	—	33
Max.Working Bus Voltage	Vdc	V	600
Peak Torque	Tp	Nm	1453.2
Continuous Torque (Water Cooling)	Tcw	Nm	844.2
Continuous Torque (Natural Cooling)	Tc	Nm	365.4
Peak Current	Ip	Arms	173
Continuous Current (Water Cooling)	Icw	Arms	67
Continuous Current (Natural Cooling)	Ic	Arms	29
Torque Constant	Kt	Nm / Arms	12.6
Back EMF Constant	Ke	Vrms / rad / s	4.2
Back EMF Constant	Ke	Vrms / (1000 r / min)	761.8
Line Resistance	R	Ω	0.5
Line Inductance	L	mH	1.2
Max.Speed, Tcw	Nmax, Tcw	rpm	450
Max.Speed, Tc	Nmax, Tc	rpm	500
Max.Speed, Tp	Nmax, Tp	rpm	330
Max.Speed, 0	Nmax	rpm	535
Power Consumption, Output Tcw	Plw	W	4242.1
Power Consumption, Output Tc	Plc	W	794.7
Motor Constant	Km	Nm / √W	13.0
Cooling Water Flow	dV / dt	L / min	7.5
Cooling Water Temperature Difference Setting	△θ	k	5
Rated Winding Temperature	θ	℃	130
Motor Mass	Ms	Kg	34.0
Rotor Mass	Mr	KG	10.5
Rotor Moment of Inertia	Jm	Kg * m²	0.2020
Cable Length (Can Be Extended Optional)	L	M	3.0
Cable Minimum Bending Radius	R	mm	102.0
