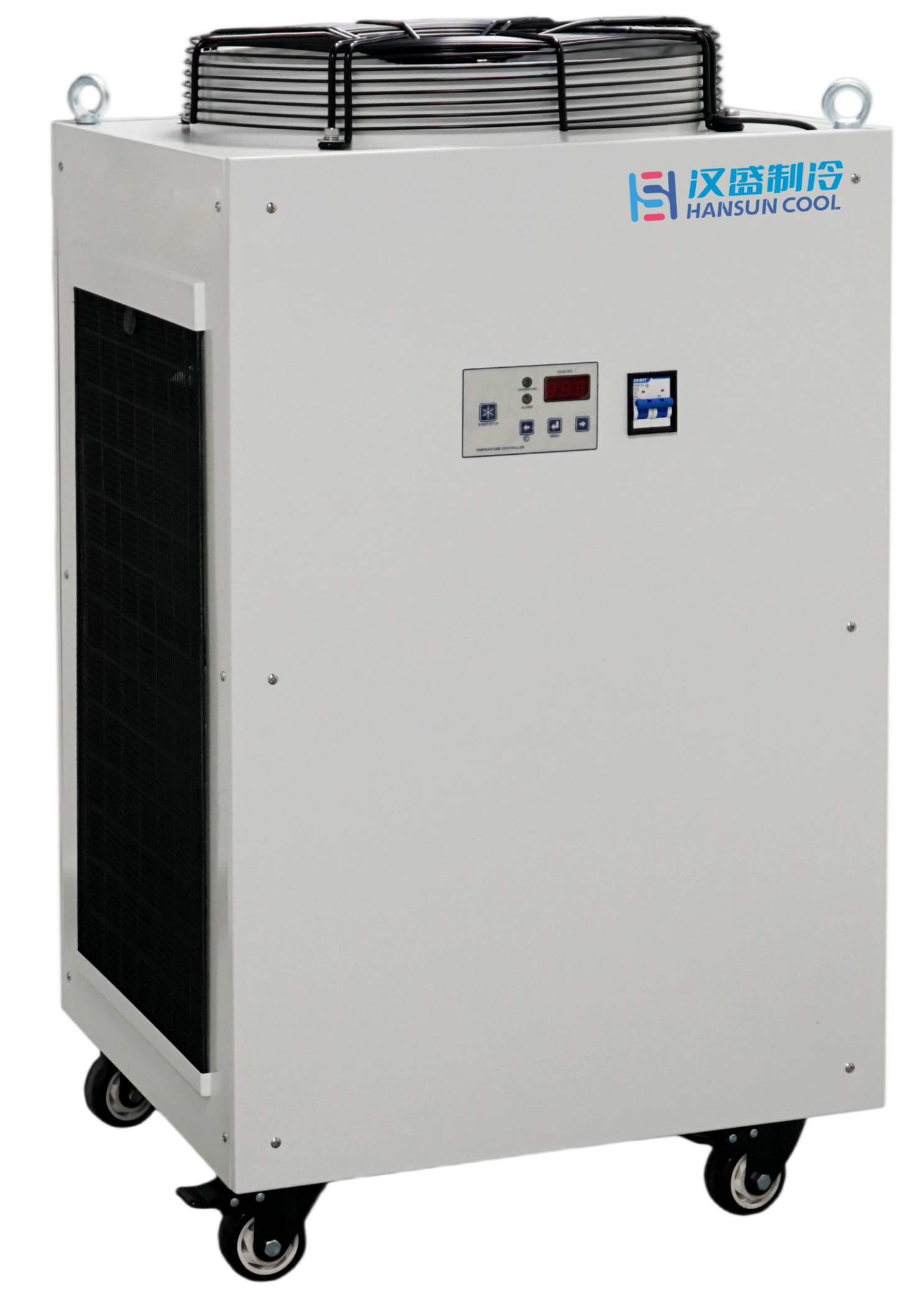

HC-3K-04A

Download

Request Information

Features

± 1℃ high precision temp control

Integrated heat disspation

Fine filtration of water

Alarming

Heating

Easy moving

Double temp control

Parameters

HC-3K-04A
Parameters
Cooling Capacity(W)a	7000 (Freezing water temp 25°C, ambient temp 35°C)
Heating Capacity(W)	3500
Refrigerant	R410a
Type of Cooling	Air Cooling
Power Supply	220V ~ /50Hz
Rated Power (W)	4360 (cooling) / 4870 (heating)
Rated Current（A）	19.8 (cooling) / 22.1 (heating)
Power Pin Definition	Brown: Live wire L; Blue: Neutral wire N; Yellow-green: Ground wire PE
Signal Pin Definition	Pins 1 and 2: Short-circuit start; Pins 3 and 4: Alarm output (normally closed)
Chilled Water Parameters	Main waterway (low-temp water)	Secondary waterway (high-temp water)
Temp Range(℃)	15~40	15~40 (set not lower than low-temp water)
Temp Control Accuracy(℃)	± 1.0
Maximum Flow（LPM）	33.3 / 58.3
Maximum Head（m）	45 / 58
High/Low Temp Alarm(℃)	+40 / +5
Flow Alarm(LPM)	4 ± 20%	<0.7 alarm / > 1.0 recovery
Water Tank Capacity（L）	45
Interface Specification	φ20 pagoda joint (G3/4 internal thread)	φ13 pagoda joint (G1/2 internal thread)
Temperature Range(℃)	10~40
Size LWH（mm）	610 × 680 × 1065
Net Weight（kg）	88
