HWQ150

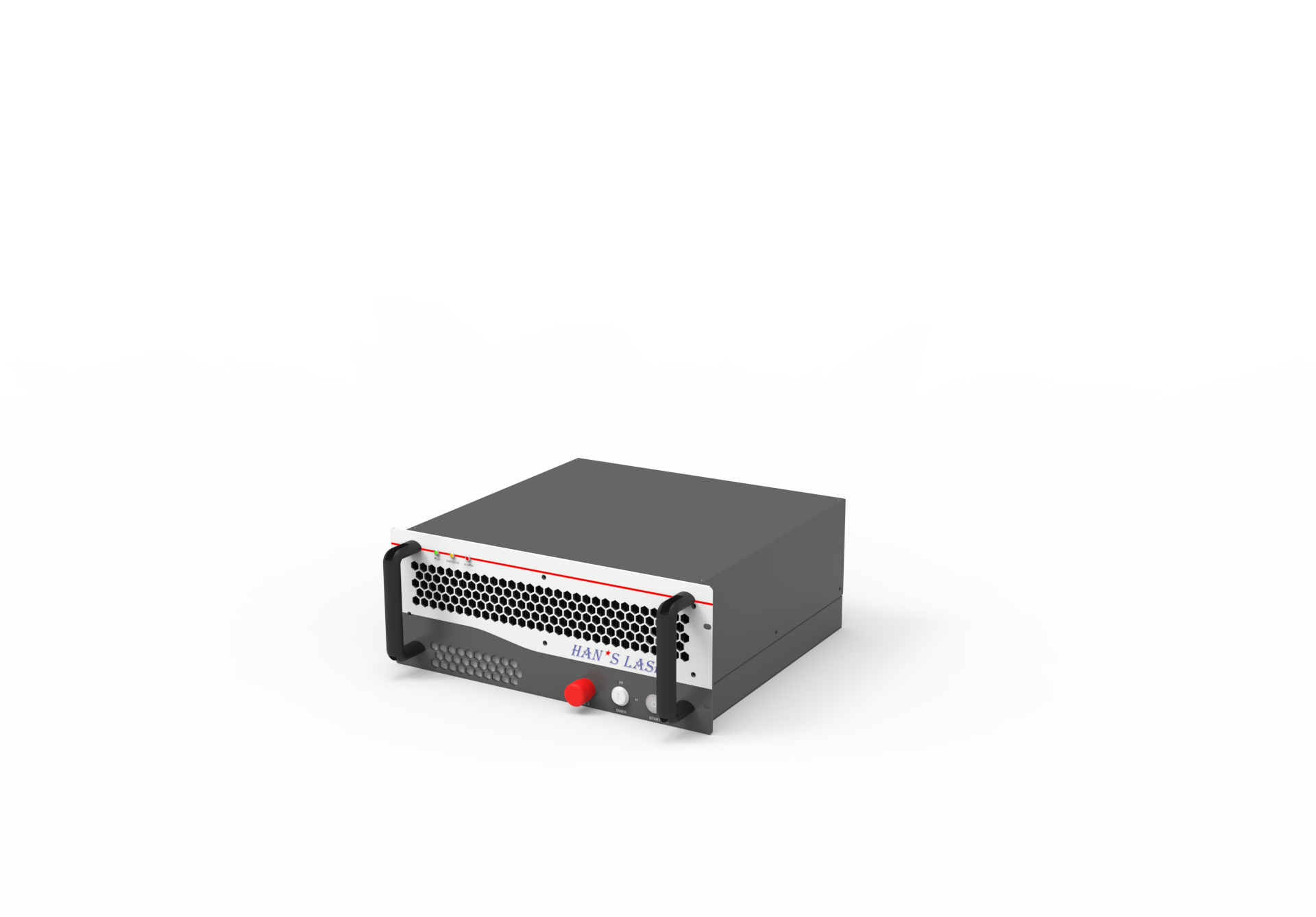

The HWQ150 & HWQ150S Fiber Laser are the third-generation laser technology developed by Han’s Laser, offer superior beam quality, efficiency, and compact size.

Download

Request Information

Features

Continuous/pulsed mode, high peak power

High wall plug eﬃciency and low power consumption

Durable optical device and maintenance-free operation

Convenient installation and integration

Small welding spot, heat aﬀected zone and deformation

Appling in consumer electronics, battery welding and cutting

Applications

Medical Equipment

Consumer Electronics

Mobile Communication

Auto Parts

Lithium Battery

Parameters

	HWQ150	HWQ150S
Optical Parameters
Wavelength	1080 ± 10 nm
Max. Average Power	QCW Mode: 150 W CW Mode: 250 W
Pulse Duration	0.05 ~ 50 ms
Beam Quality	< 6	≤ 1.3
Fiber Core Diameter	50/100 μm	14/25 μm
Numerical Aperture	0.22	0.07
Max. Pulse Energy	15 J
Max. Peak Power	1500 W
Red Guide Laser Power	> 0.1 mW
Power Stability	≤ 3 %
General Parameters
Supply Voltage	AC 220 V ± 10 % @ 50 Hz
Operation Temperature	10 ~ 35 °C
Storage Temperature	- 40 ~ + 75 °C
Relative Humidity	10 ~ 95 %, non-condensing
Cooling	Air Cooling
House Keeping Function	Waveform Editing / Operation Parameters / Working Mode / Diagnosis
Physical Properties
Console Dimensions	426 mm × 442 mm × 190 mm
Weight	< 35 kg
