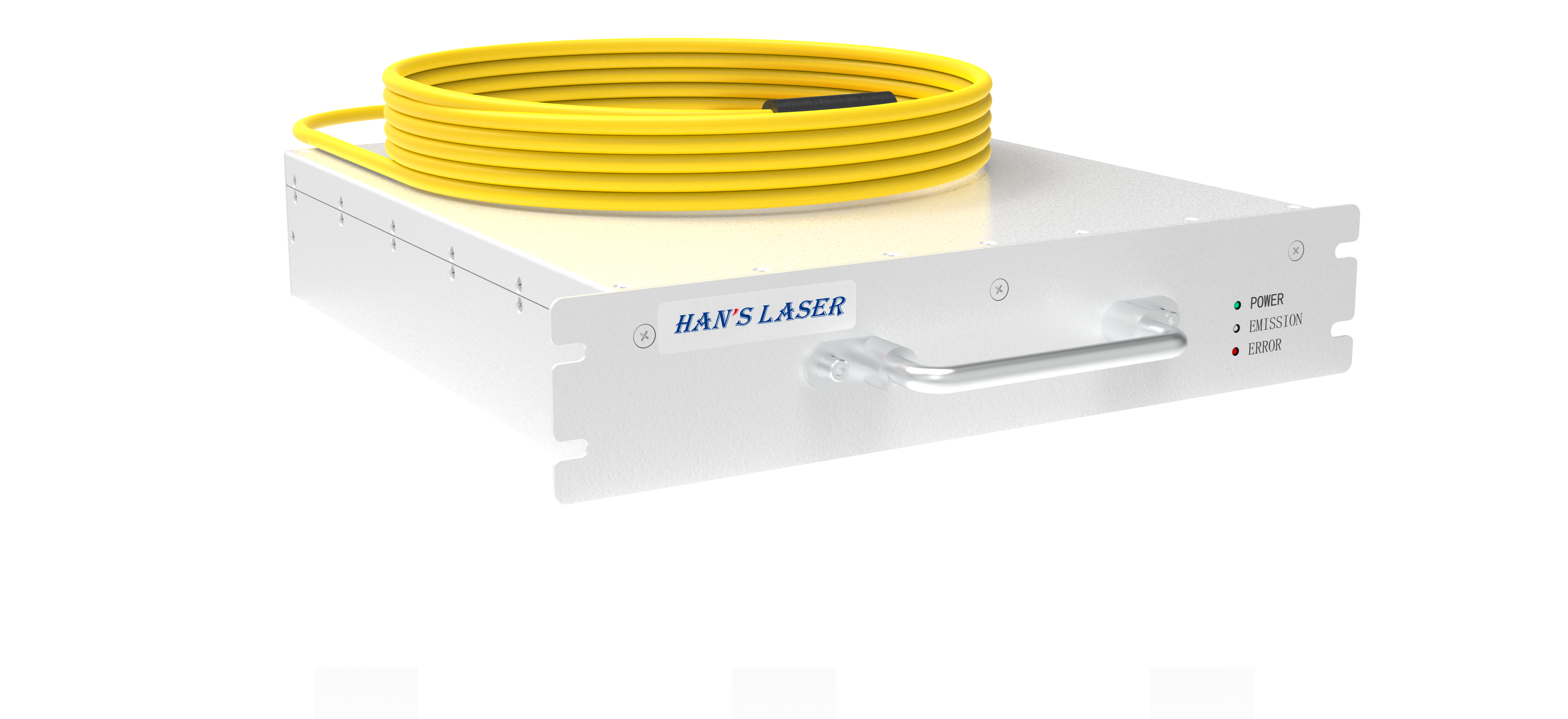

HFC500

HFC Series CW Fiber Laser is a brand-new Continuous Fiber Laser independently developed by Han’s Laser and offers superior beam quality, high efficiency, and a compact size.

Download

Request Information

Features

Easy installation and integration

Continuous/pulse mode, high peak power

Zero consumables, maintenance-free for life

Small weld spots, minimal heat-affected zone and deformation

High photoelectric conversion efficiency, low power consumption

Applications in consumer electronics, battery welding, and cutting

Applications

Auto Parts

Lithium Battery

Medical Equipment

Consumer Electronics

Mobile Communication

Parameters

	HFC500	HFC500S
Optical Parameters
Wavelength	1080 ± 10 nm
Max. Average Power	CW Mode: 500 W
Pulse Duration	0.05 ~ 50 ms
Beam Quality	< 6	≤ 1.3
Fiber Core Diameter	50/100 μm	14/25 μm
Numerical Aperture	0.22	0.07
Max. Pulse Energy	5 J
Max. Peak Power	500 W
Red Guide Laser Power	> 0.1 mW
Power Stability	≤ 3 %
General Parameters
Supply Voltage	AC 220 V ± 10 % @ 50 Hz
Operation Temperature	10 ~ 35 °C
Storage Temperature	- 40 ~ + 75 °C
Relative Humidity	10 ~ 95 %, non-condensing
Cooling	Air Cooling
House Keeping Function	Waveform Editing / Operation Parameters / Working Mode / Diagnosis
Physical Properties
Console Dimensions	489 mm × 442 mm × 157 mm (including handles) (L × W × H)
Weight	< 30 kg
