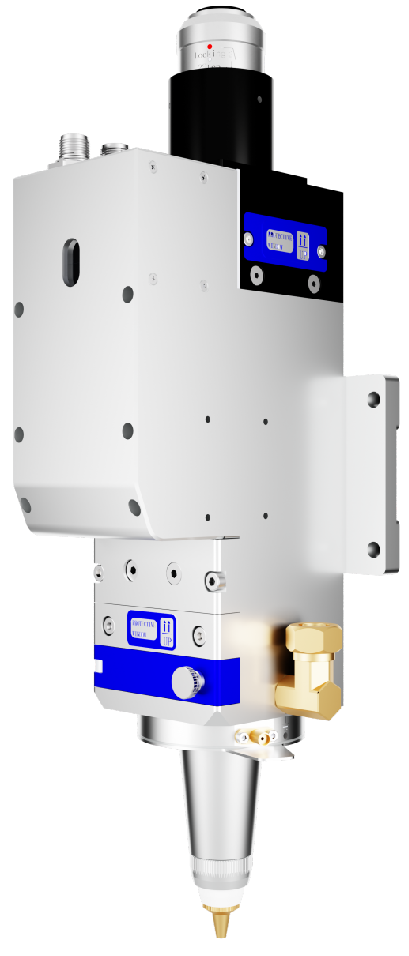

HC03-B

The Han's Focus HC03-B cutting head delivers high-precision, stable performance for industrial laser cutting with efficient energy control and durability.

Download

Request Information

Features

Integrated collimation & focusing optics

Dust-proof, lightweight, anti-collision housing

Servo-driven height adjustment (real-time via bus control)

Built-in intelligent monitoring & diagnostics

Applications

Pipe Cutting

Machinery Manufacturing

Furniture Accessory Manufacturing

Aluminum Door and Window Industry

Aerospace

Shipbuilding

Automobile Making

Parameters

	H03-B-125	H03-B-150
Technical Parameters
Applicable Power	≤ 3 kW	≤ 3 kW
Collimator Focal Length	100 mm	100 mm
Focal Length	125 mm	150 mm
Coaxiality Adjustment Range	± 1.5 mm	± 1.5 mm
Vertical Focus Adjustment Range	- 12 ~ + 9 mm	- 18 ~ + 13 mm
NA	0.13	0.13
Max Gas Pressure	25 bar	25 bar
Fiber Core Diameter	50 μm / 100 μm	50 μm / 100 μm
Fiber Connector	QBH, G5, etc.	QBH, G5, etc.
Weight	≤ 3.8 kg	≤ 3.8 kg
Ceramic Ring	Φ 28 mm	Φ 21.4 mm
Threaded Nozzle	M11 * 0.75 mm	M8 * 0.75 mm
