G-050

The HANS-G series is a framed inner-rotor torque motor with direct-drive structure, delivering high dynamic response and precise positioning. It integrates a BISS-C absolute encoder and is available in standard or custom configurations.

Download

Request Information

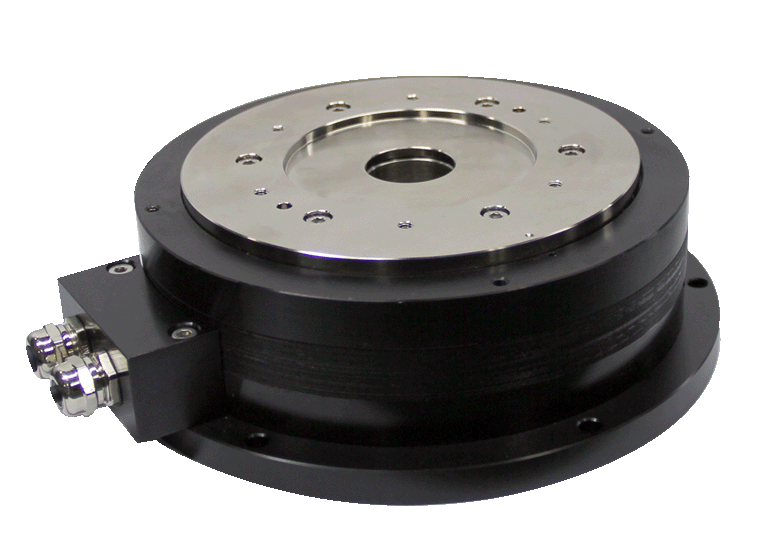

HANS-G Series Frame Inner Rotor Torque Motor

Features

Inner rotor or outer rotor structure

High speed or low speed winding design

Reliable performance, mature process, fast delivery

Integrated BISS-C interface absolute position feedback

Applications

3C Devices

Display Panels

Semiconductors

Medical Equipment

Precision Machine Tools

PCB Equipment and Other Applications

Parameters

HANS-G-xxx-Dxxx-Hxxx-T43-1-x	Symbol	Unit	G-050
Cable Outlet			1
Outer Diameter	D1	mm	208
Center Hole	D2	mm	43
Installation Height	H	mm	130
Continuous Torque (Tmax)	Tc	Nm	50
Peak Torque	Tp	Nm	150
Vmax, Tc @ Vbu s= 310 Vdc	Nmax, Tc	Rpm	250
Vmax, Tp @ Vbus = 310 Vdc	Nmax, Tp	Rpm	190
Vmax, 0 @ Vbus = 310 Vdc	Nmax, 0	Rpm	300
Encoder (BISS-C)		P / rev	23 bits
Positioning Accuracy		arc sec	± 10 / ± 5
Repeat Accuracy		arc sec	±1.0
Maximum Axial Load (recommend)	Fa	N	3000
Maximum Torque Load (recommend)	T	Nm	200
Motor Outlet		M	0.2
Cable Bending Radius (Within Drag Chain）		mm	37.5
Continuous Current (Tmax)	Ic	Arms	4.3
Peak Current (1 s)	Ip	Arms	13.0
Torque Constant (Within 25 ℃ ± 5 ℃）	Tf	Nm / Arms	11.50
Electromotive constant (within 25℃±5℃）	Te	Vrms / rad / s	3.83
Resistance (Within 25 ℃ ± 5 ℃）	R	Ω (p-p)	4.5
Inductance (Within 25 ℃ ± 5 ℃）	L	mH (p-p)	12.2
Pole Pairs	p		16
Max. Coil Temperature	Tmax	℃	120
Motor Mass		KG	27
Mover Mass	Mc	KG	8.3
Rotor Moment of Inertia	Jm	Kg * m²	0.027
Axial Runout		mm	0.05
Radial Runout		mm	0.05
