301A-S

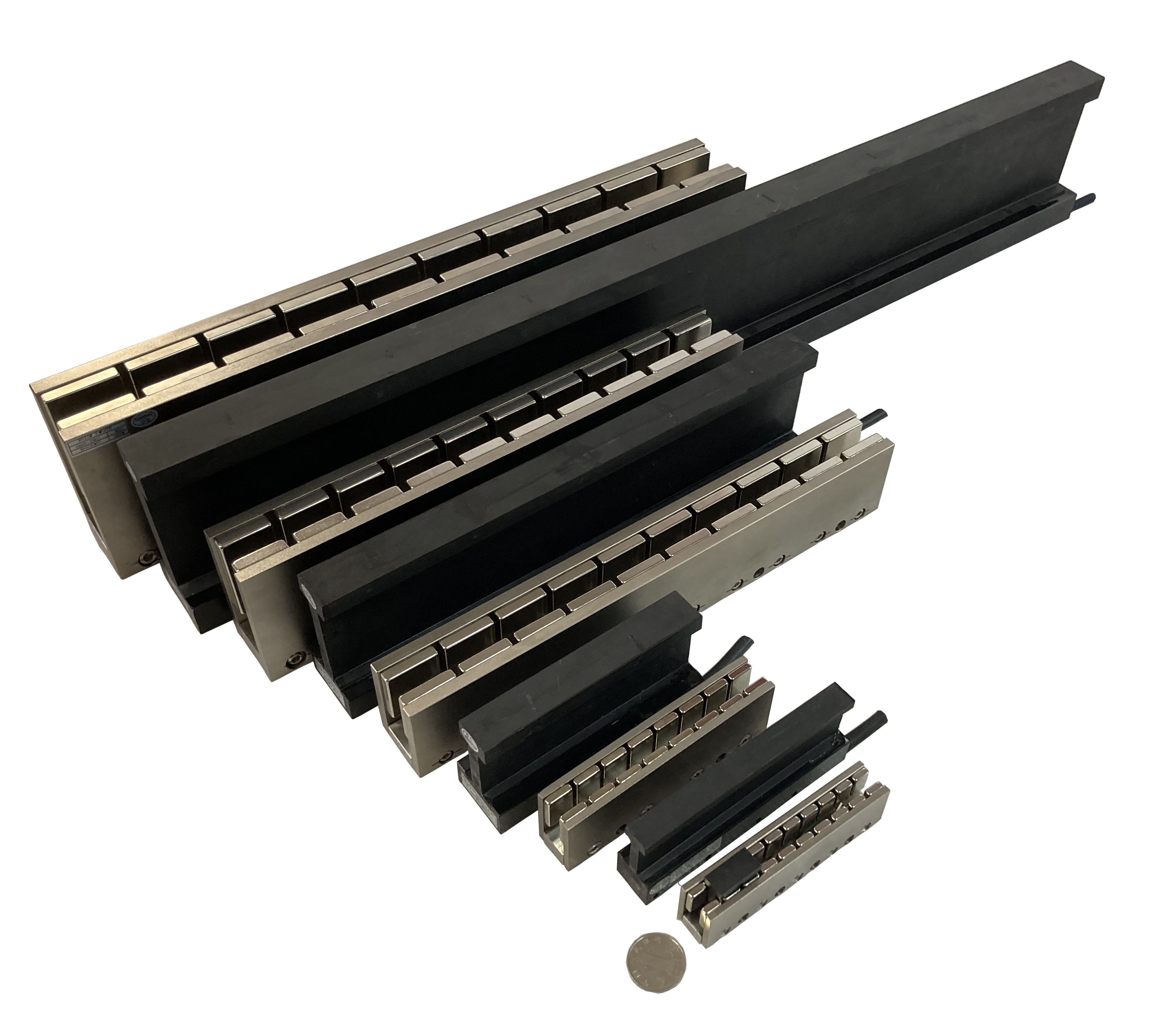

The LSMU5 series is Han's Motor's ironless linear motor, featuring smooth thrust characteristics, low inertia with high acceleration, strong overload capacity, no cogging force or electromagnetic attraction, and a modular design.

Download

Request Information

LSMU5 Series Ironless Linear Motor (Natural Cooling)

Features

Optional hall sensor

Coreless with zero cogging

compact winding design with patent technology

High thrust density, high continuous and peak force

Applications

3C Devices

Display Panels

Medical Equipment

Precision Machine Tools

Suitable for Laser Machine

PCB Equipment and Other Applications

Parameters

LSMU510xxxx-x H-NC-N-D00.5	Symbol	Unit	301A-S
			Series
Continuous Force (Tmax）	Fc	N	168
Peak Force	Fp	N	936
Motor Constant	Km25	N / Sqrt (W)	17.7
Max.Continuous Power Dissipation	Pc	W	124.2
Continuous Current (Tmax)	Ic	Arms	2.3
Peak Current (1S)	Ip	Arms	13.0
Force Constant (25 ℃ ± 5 %）	Kf	N / Arms	73.0
Back EMF Constant (25 ℃, ± 5 %）	Ke	Vrms / m/ s	24.3
Electrical Resistance (25 ℃, ± 5 %）P-P	R	Ω	11.4
Inductance (25 ℃, ± 5 %）P-P	L	mH	9.5
Max Coil Temperature	Tmax	℃	120
Polar Distance (N-N) (360 ℃ Electrical Cycle)	2τ	mm	60
Magnetic Attraction	Fa	kN	0.0
Max.DC Bus Voltage	Ubus	V	330
Vmax, Fc @ Vbus = 310 Vdc	Vmax, Fc	m / s	4.4
Vmax, Fp @ Vbus = 310V dc	Vmax, Fp	m / s	0.8
Vmax, 0 @ Vbus = 310 Vdc	Vmax,0	m / s	5.1
Mover Mass	Mp	Kg	1.0
Stator Mass within Unit Length	Ms	Kg/m	15.0
