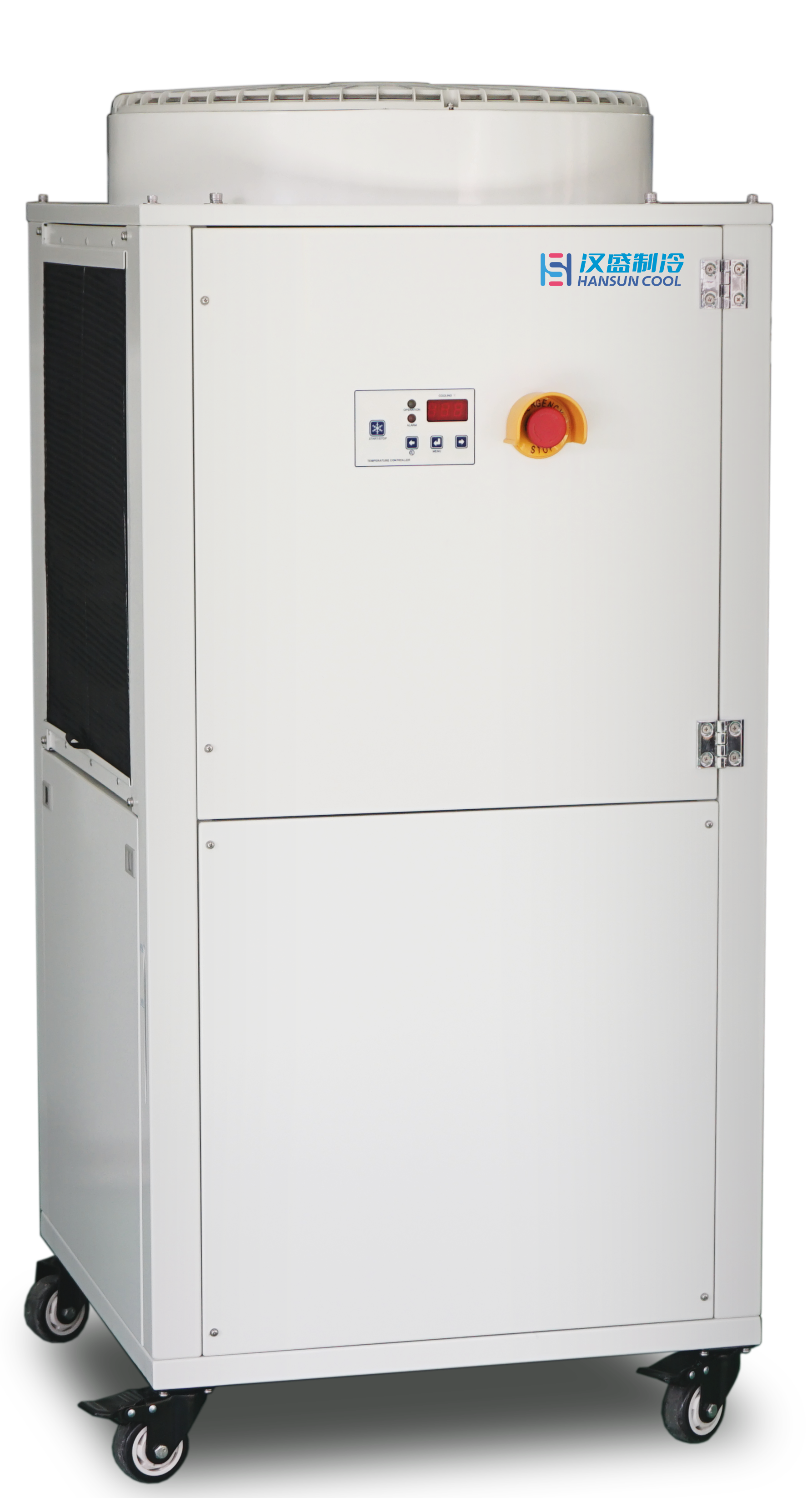

HC-6K-24A

Download

Request Information

Features

± 1 ℃ high precision temp control

Integrated heat dissipation

Fine filtration of water

Alarming

Heating

Easy moving

Double temp control

Parameters

HC-6K-24A
Parameters
Cooling Capacity(W)a	14000 (Freezing water temp 25°C, ambient temp 35°C)
Heating Capacity(W)	7000
Refrigerant	R410A
Type of Cooling	Air Cooling
Power Supply	380V 3N~/50Hz
Rated Power (W)	7600 (cooling) / 8350 (heating)
Rated Current (A)	16.3 (cooling) / 17.8 (heating)
Power Pin Definition	L1, L2, L3: Live wire; N: Neutral wire; PE: Ground wire
Signal Pin Definition	Pin 1,2: External control input (short-circuit start); Pin 3,4: Alarm output (normally closed)
Chilled Water Parameters	Main waterway (low-temp water)	Secondary waterway (high-temp water)
Temp Range (℃)	15~40	15~40 (set not lower than low-temp water)
Temp Control Accuracy (℃)	± 1.0
Filter Fineness	1.0
Rated/Maximum Flow (LPM)	66.7 / 117
Rated/Maximum Head (m)	45 / 58
High/Low Temp Alarm (℃)	+40 / +5
Flow Alarm(LPM)	4 ± 20%	Alarm <0.7 / recovery >1.0
Water Tank Capacity (L)	75
Interface Specification	φ25 pagoda joint (G3/4 internal thread)	φ13 pagoda joint (G 1/2 internal thread)
Temperature Range (℃)	10~40
Relative Humidity (%)	≤ 85
Size LWH (mm)	640 × 855 × 1430
Net Weight (kg)	185
Running Noise (dB)	78
