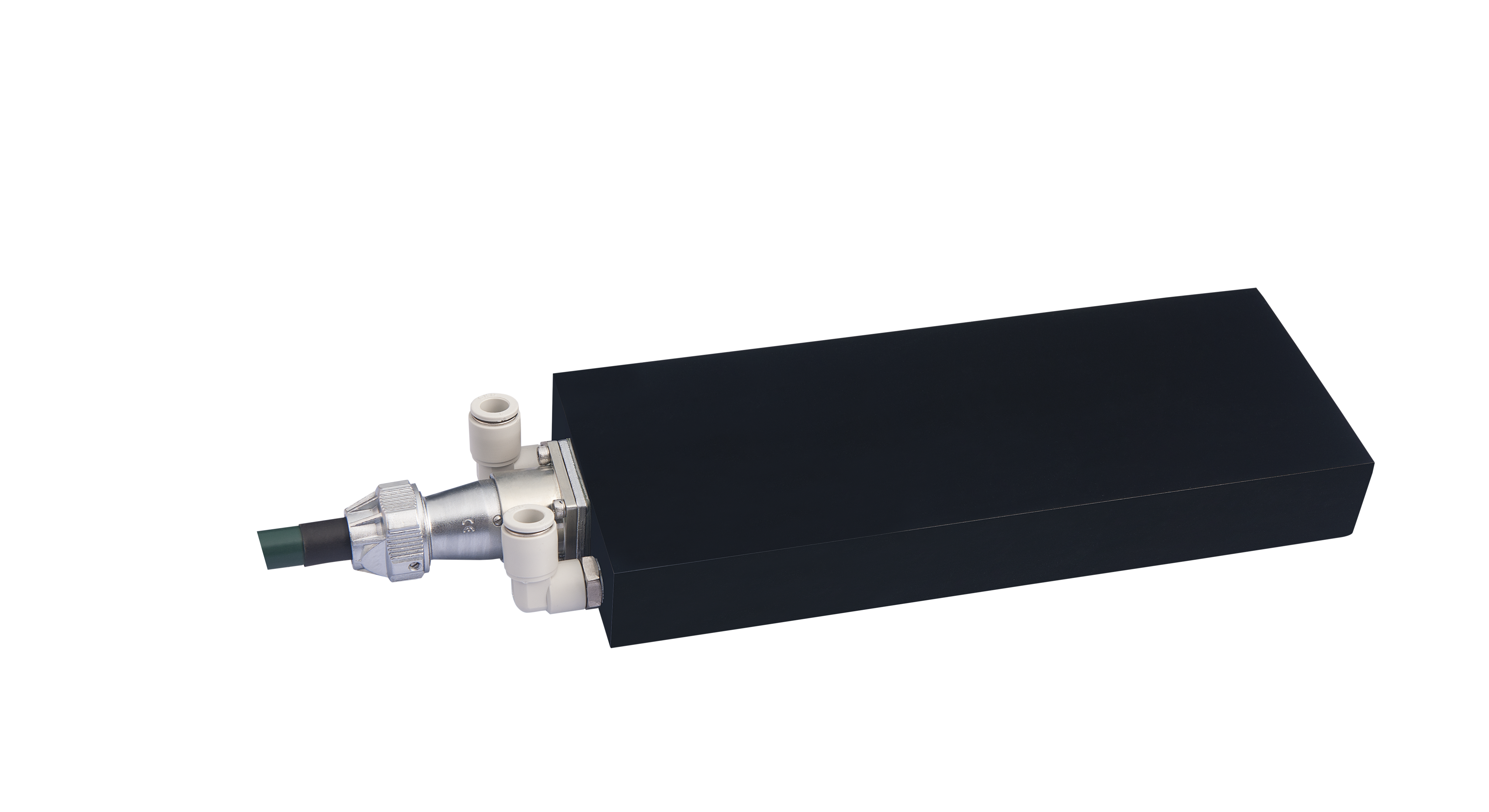

701A-S

The LSMF6 series is Han's Motor's ironless linear motor, featuring smooth thrust characteristics, low inertia with high acceleration, strong overload capacity, no cogging force or electromagnetic attraction, and a modular design.

Download

Request Information

LSMF6 Series Iron Core Linear Motor (Natural Cooling)

Features

Optional hall sensor

Water or natural cooling

Multi-series peak force up to 20000 N

Iron core technology with low cogging

Applications

3C Devices

Display Panels

Semiconductors

PCB Equipment

Medical Equipment

Precision Machine Tools

Suitable for Laser Machine

Industrial Automation and Other Applications

Parameters

LSMU510xxxx-x H-NC-N-D00.5	Symbol	Unit	701A-S
			Series
Continuous Force (Tmax）	Fc	N	109
Peak Force	Fp	N	259
Motor Constant (25 ℃)	Km25	N / Sqrt (W)	15.6
Max.Continuous Power Dissipation	Pc	W	67
Continuous Current (Tmax)	Ic	Arms	6.0
Peak Current (1S)	Ip	Arms	18.0
Force Constant (25 ℃ ± 5 %）	Kf	N / Arms	18.3
Back EMF Constant (25 ℃, ± 5 %）	Ke	Vrms / m/ s	6.1
Electrical Resistance (25 ℃, ± 5 %）P-P	R	Ω	0.9
Inductance (25 ℃, ± 5 %）P-P	L	mH	11.8
Max Coil Temperature	Tmax	℃	120
Polar Distance (N-N) (360 ℃ Electrical Cycle)	2τ	mm	42
Magnetic Attraction	Fa	kN	0.5
Max.DC Bus Voltage	Ubus	V	600
Vmax, Fc @ Vbus = 310 Vdc		m / s	15.1
Vmax, Fp @ Vbus = 310Vdc		m / s	7.1
Vmax, 0 @ Vbus = 310 Vdc		m / s	20.5
Vmax, Fc @ Vbus = 537 Vdc		m / s	26.6
Vmax, Fp @ Vbus = 537 Vdc		m / s	12.5
Vmax, 0 @ Vbus = 537 Vdc		m / s	35.7
Mover Mass	Mp	Kg	1.3
Stator Mass within Unit Length	Ms	Kg/m	3.4
